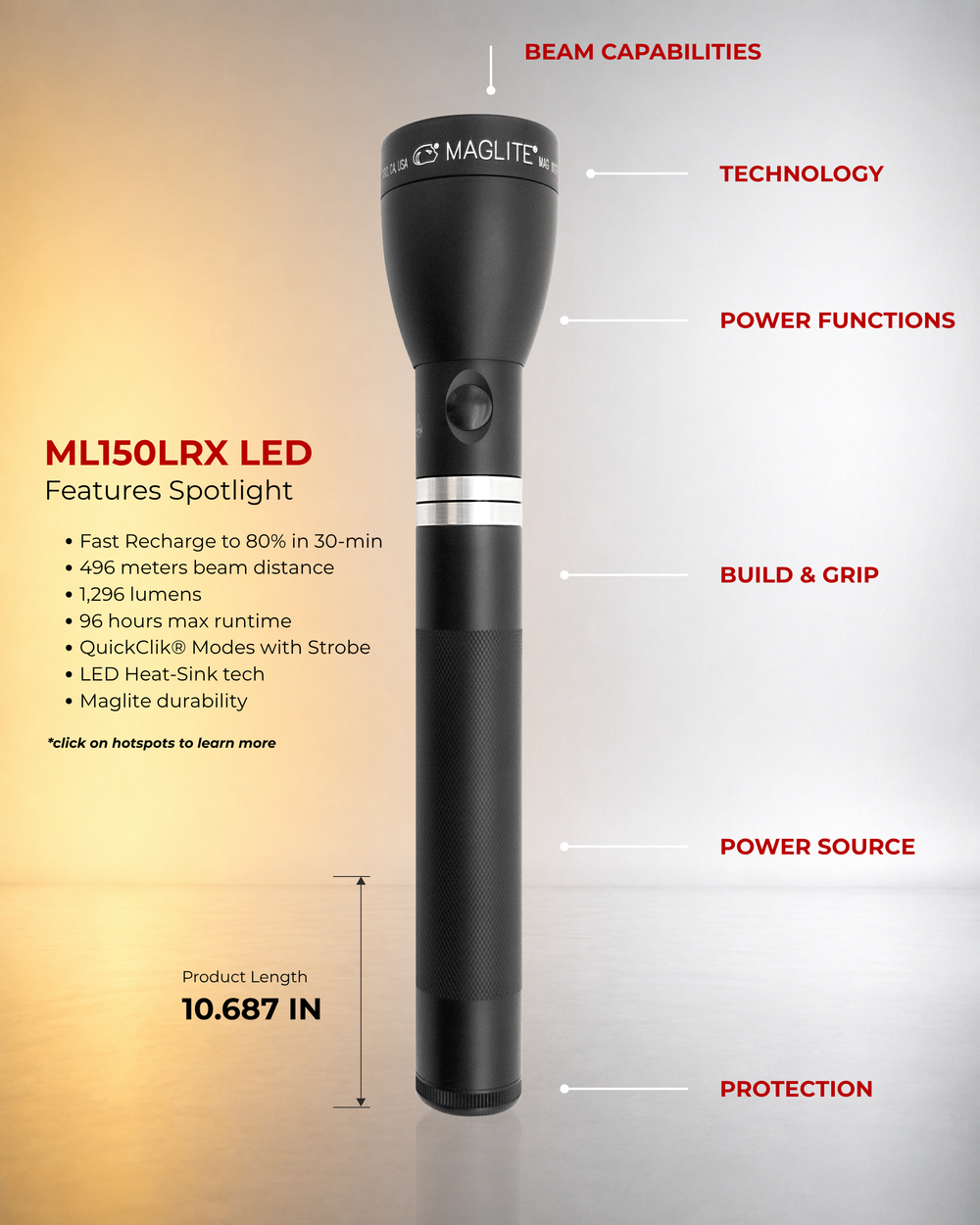

The Maglite® ML150LRX® Rechargeable LED Flashlight is a high-performance, full-size rechargeable flashlight designed for professional, law enforcement, public safety, security, emergency, outdoor, work, and general-purpose applications.  It features a fast re-charge capability to 80% in just 30 minutes, with a full re-charge in just 2.5 hours. At maximum output, it produces 1,296 lumens, projects a beam up to 496 meters (approximately 1,627 feet), and delivers 61,467 candela of peak beam intensity. Three primary output levels provide 3 hours 15 minutes on High, 22 hours on Low, and up to 97 hours in Eco Mode. The ML150LRX combines LED Heat-Sink Technology, Quick Focus® spot-to-flood adjustment, QuickClik® electronic switching, four selectable function sets, a rechargeable LiFePO4 battery system, rugged anodized aluminum construction, IPX4 water resistance, and 1-meter drop resistance.

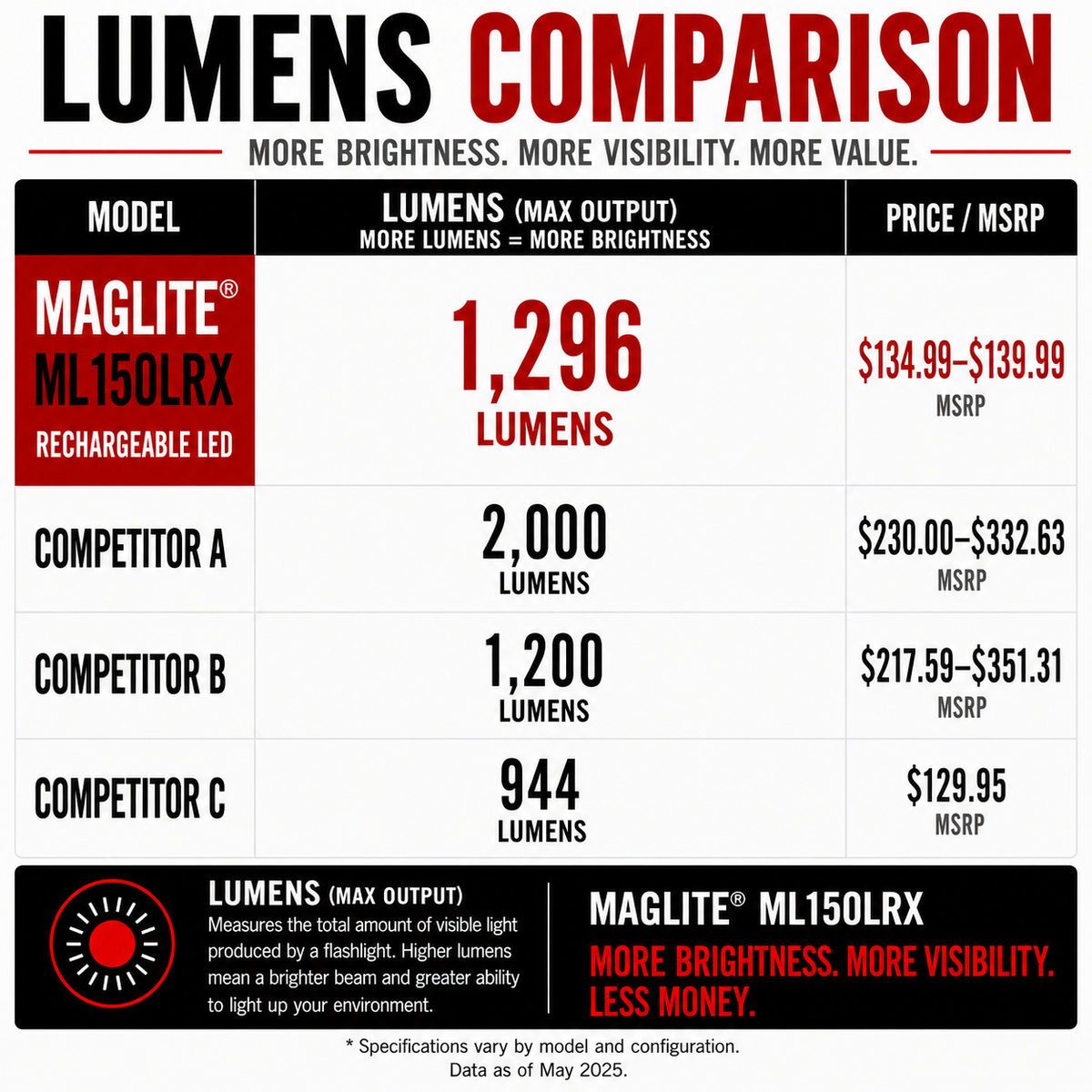

1. 496-Meter Beam Reach, Up to 97-Hour Runtime & 1,296 Lumens

The ML150LRX combines high-output illumination with a concentrated long-range beam and extended low-power runtime. At maximum output, the flashlight produces 1,296 lumens and projects its beam up to 496 meters (approximately 1,627 feet) with 61,467 candela of peak beam intensity.

Three output levels allow brightness and runtime to be matched to the task. High delivers 1,296 lumens for up to 3 hours 15 minutes, Low delivers 163 lumens for up to 22 hours, and Eco Mode delivers 27 lumens for up to 97 hours. The maximum Eco runtime provides more than four days of continuous light, making it practical for extended operations, emergency preparedness, overnight use, and situations where conserving battery power is important.

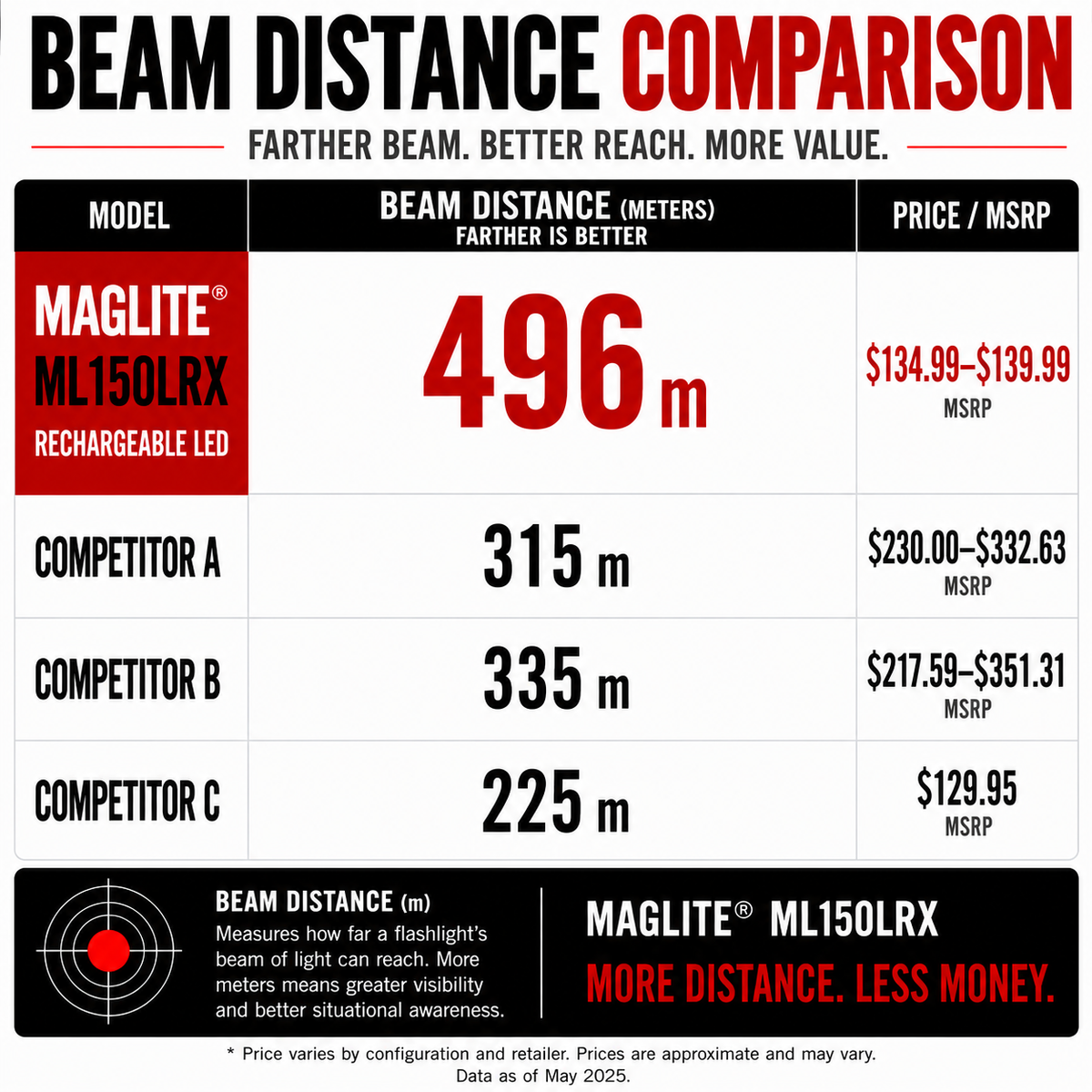

• Beam Distance: 496 m / approx. 1,627 ft.

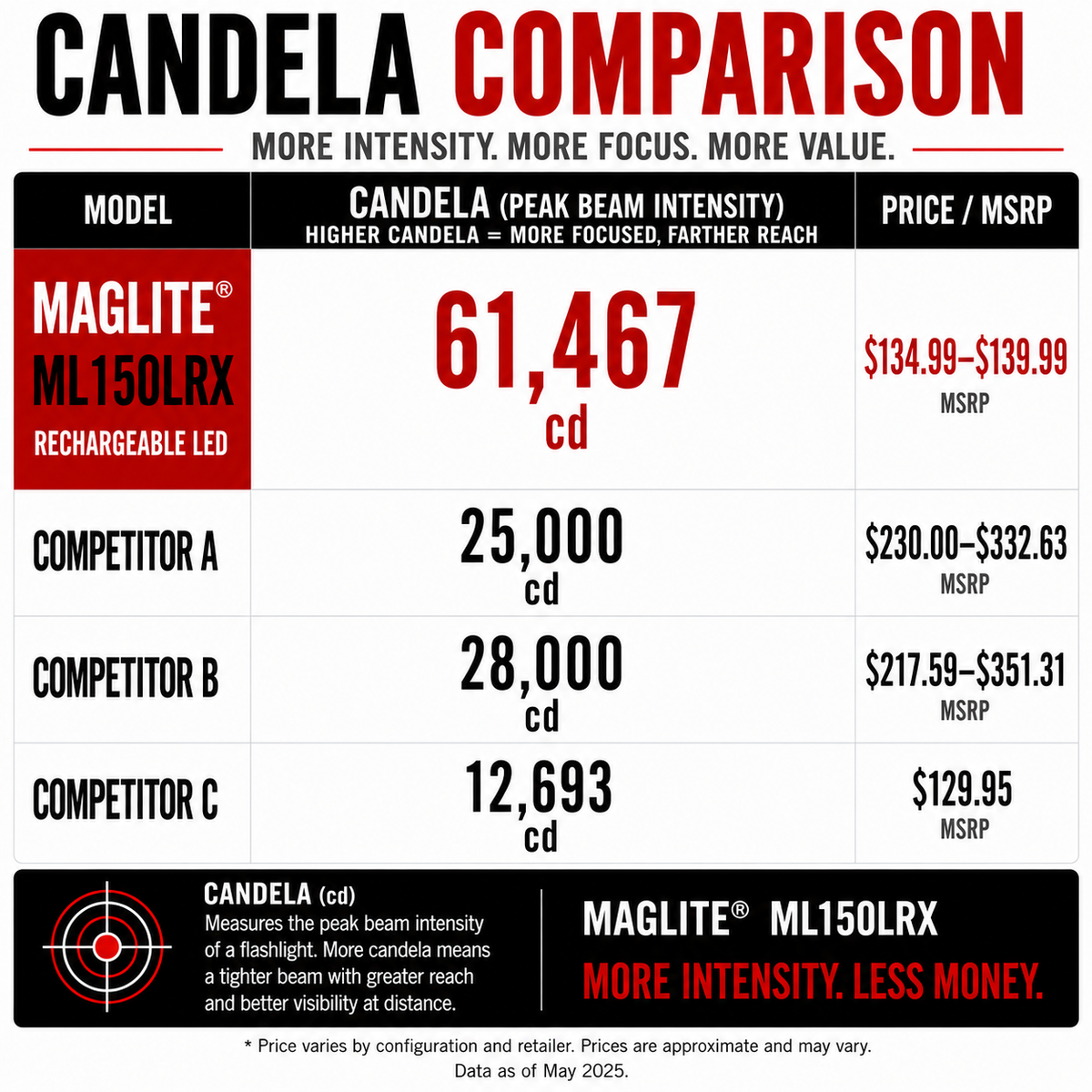

• Peak Beam Intensity: 61,467 cd

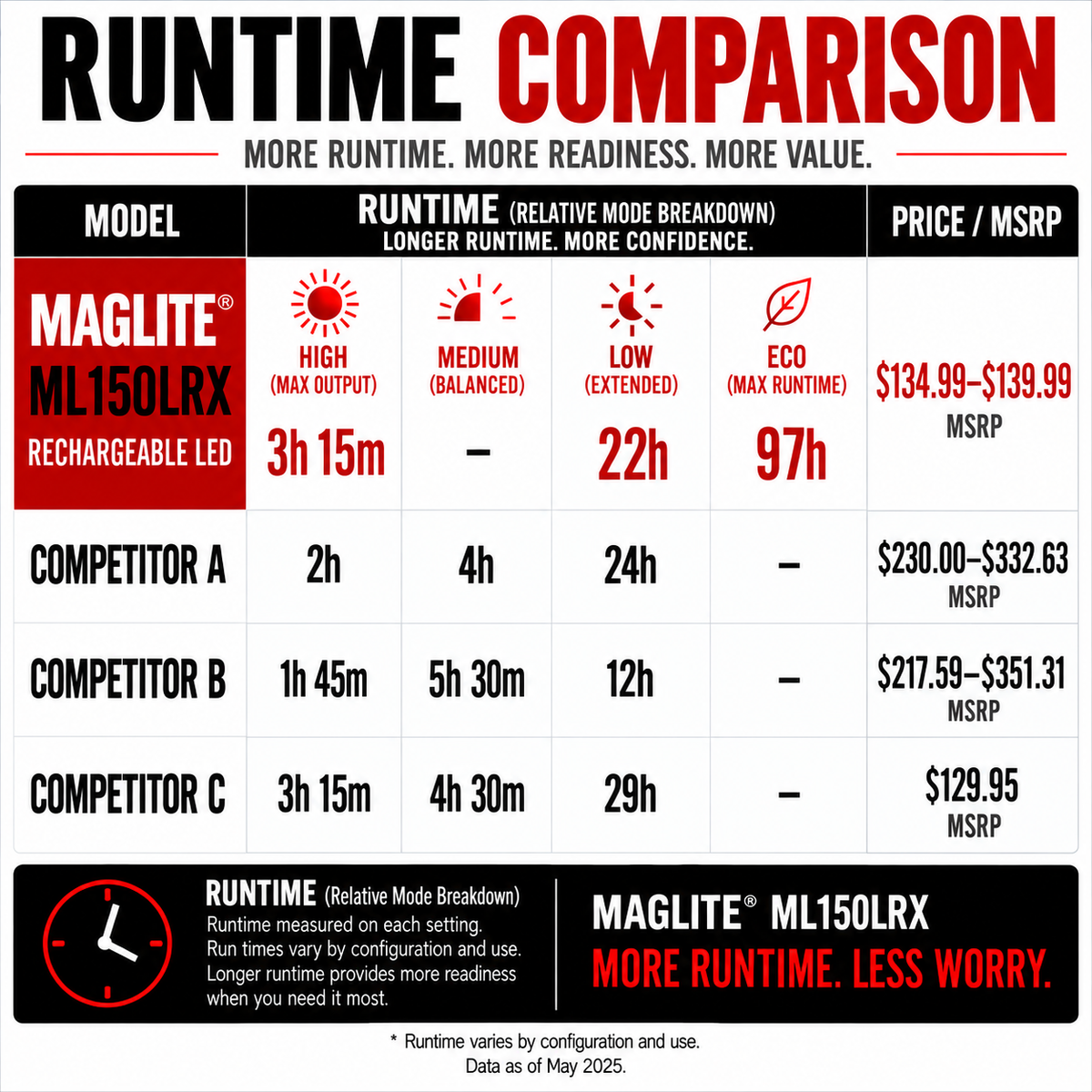

• Runtime – High: 3 hr. 15 min.

• Runtime – Low: 22 hr.

• Runtime – Eco: 97 hr.

• Light Output – High: 1,296 lumens

• Light Output – Low: 163 lumens

• Light Output – Eco: 27 lumens

• Maximum Light Output: 1,296 lumens

• Light Source: LED

2. LED Heat-Sink Technology with Quick Focus® Spot-to-Flood Beam Control

The ML150LRX uses advanced LED technology with LED Heat-Sink Technology to manage heat generated by the high-output LED and support efficient performance. Its optical system is paired with Maglite® Quick Focus®, providing fast control over the beam pattern directly from the flashlight head.

With approximately a ¼ turn of the head, the beam adjusts from a concentrated spot for long-distance viewing to a wider flood for illuminating a broader nearby area. This allows the ML150LRX to transition quickly between long-range searching, general illumination, professional work, inspections, and close-range tasks.

• Light Source / Technology: LED

• LED Thermal Management: LED Heat-Sink Technology

• Focusing System: Quick Focus®

• Beam Adjustment: Adjustable Spot-to-Flood

• Focus Adjustment: Approximately ¼ turn of the head

• Maximum Beam Distance: 496 m

• Peak Beam Intensity: 61,467 cd

• Head Diameter: 1.937 in. / 49.2 mm

3. QuickClik® Multi-Mode Operation with 4 Selectable Function Sets

The ML150LRX uses Maglite®'s QuickClik® electronic switch to provide fast access to multiple operating functions through a single control. Available functions include Full Power, Low Power, Eco Mode, Momentary, and Strobe, organized into four selectable function sets.

The General function set provides Full Power, Low Power, and Eco Mode. Outdoor provides Full Power, Low Power, and Strobe. Law Enforcement provides Momentary, Full Power, and Eco Mode. Tactical provides Momentary, Full Power, and Strobe. This configurable system allows users to prioritize the functions they need to access most quickly without adding multiple switches or controls.

• Electronic Switch: QuickClik®

• Available Functions: Full Power, Low Power, Eco Mode, Momentary, Strobe

• Number of Function Sets: 4

• General: Full Power / Low Power / Eco Mode

• Outdoor: Full Power / Low Power / Strobe

• Law Enforcement: Momentary / Full Power / Eco Mode

• Tactical: Momentary / Full Power / Strobe

• Full Power Output: 1,296 lumens

• Low Power Output: 163 lumens

• Eco Mode Output: 27 lumens

• High Runtime: 3 hr. 15 min.

• Low Runtime: 22 hr.

• Eco Runtime: 97 hr.

4. Rugged Anodized Aluminum Construction with Knurled Grip

The ML150LRX is built around a rugged anodized aluminum body designed for repeated professional and everyday use. Its full-size cylindrical barrel incorporates Maglite®'s distinctive knurled gripping surface, providing a textured area for secure handling during patrol, work, emergency, outdoor, and general-purpose applications.

Despite its full-size rechargeable construction and long-range performance, the ML150LRX remains relatively lightweight. With its rechargeable battery installed, the flashlight weighs approximately 15.2 oz. Its body measures approximately 10.687 inches long, with a head diameter of approximately 1.937 inches.

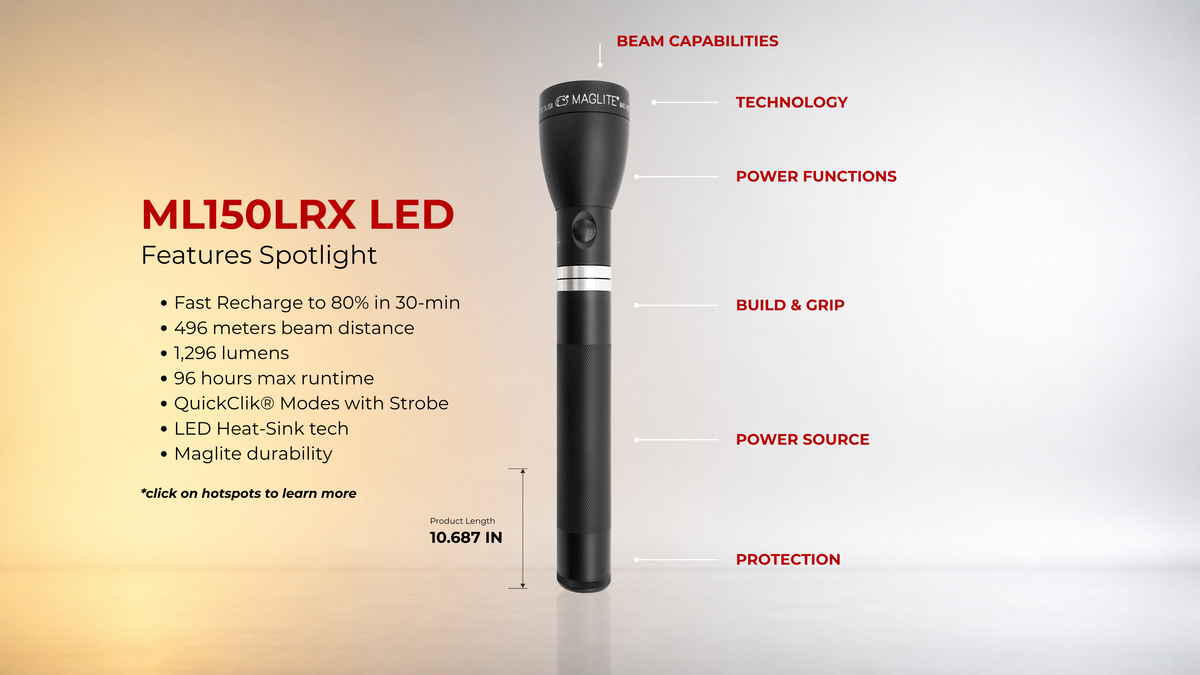

• Product Type: Full-Size Rechargeable LED Flashlight

• Construction: Rugged Anodized Aluminum

• Grip: Textured / Knurled Barrel Grip

• Length: 10.687 in. / approx. 271.45 mm

• Head Diameter: 1.937 in. / approx. 49.2 mm

• Weight with Battery: Approx. 15.2 oz.

• Available Finish: Matte Black

• Designed for: Professional, Law Enforcement, Public Safety, Emergency, Outdoor, Work, and General-Purpose Use

5. Rechargeable LiFePO4 Battery with Fast-Charging Cradle

The ML150LRX is powered by a rechargeable lithium iron phosphate (LiFePO4) battery, eliminating the need to routinely replace disposable batteries. LiFePO4 chemistry is designed for a combination of safety, performance, and long service life, making it well suited to a flashlight intended for frequent charging and professional use.

The rechargeable battery is designed for a long service life of up to 2,000 charge/discharge cycles. The charging cradle securely holds the flashlight during charging and is designed to prevent battery overcharging. The fast-charging system can recharge the battery to approximately 80% in about 30 minutes, helping reduce downtime between uses.

Charging-system configurations are available for different applications, including AC charging, 12V DC vehicle charging, and hard-wire installations.

• Battery Chemistry: Lithium Iron Phosphate / LiFePO4

• Battery Type: Rechargeable

• Rechargeable: Yes

• Battery Included: Yes

• Battery Service Life: Up to 2,000 charge/discharge cycles

• Fast Charge: Approximately 80% charge in about 30 minutes

• Charging Method: Charging Cradle

• Overcharge Protection: Yes

• Cradle Retention: Designed to securely hold the flashlight during charging

• Available Charging Configurations: AC, 12V DC Vehicle, and 12V Wire-Lead Systems

• Maximum Runtime: Up to 97 hours in Eco Mode

6. IPX4 Water Resistance & 1-Meter Drop Resistance

The ML150LRX is designed for demanding indoor and outdoor environments with an IPX4 water-resistance rating, providing protection against splashing water. This makes the flashlight suitable for professional field work, outdoor use, emergency response, roadside situations, and other environments where exposure to rain or incidental moisture may occur.

The flashlight is also rated for 1-meter drop resistance, providing additional protection against accidental drops during normal use. Its water resistance and impact resistance complement the rugged anodized aluminum construction for dependable use in professional and everyday applications.

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Construction: Rugged Anodized Aluminum

• Rechargeable Professional-Grade Design: Yes

• Designed for: Indoor, Outdoor, Professional, Emergency, Law Enforcement, Public Safety, and General-Purpose Use

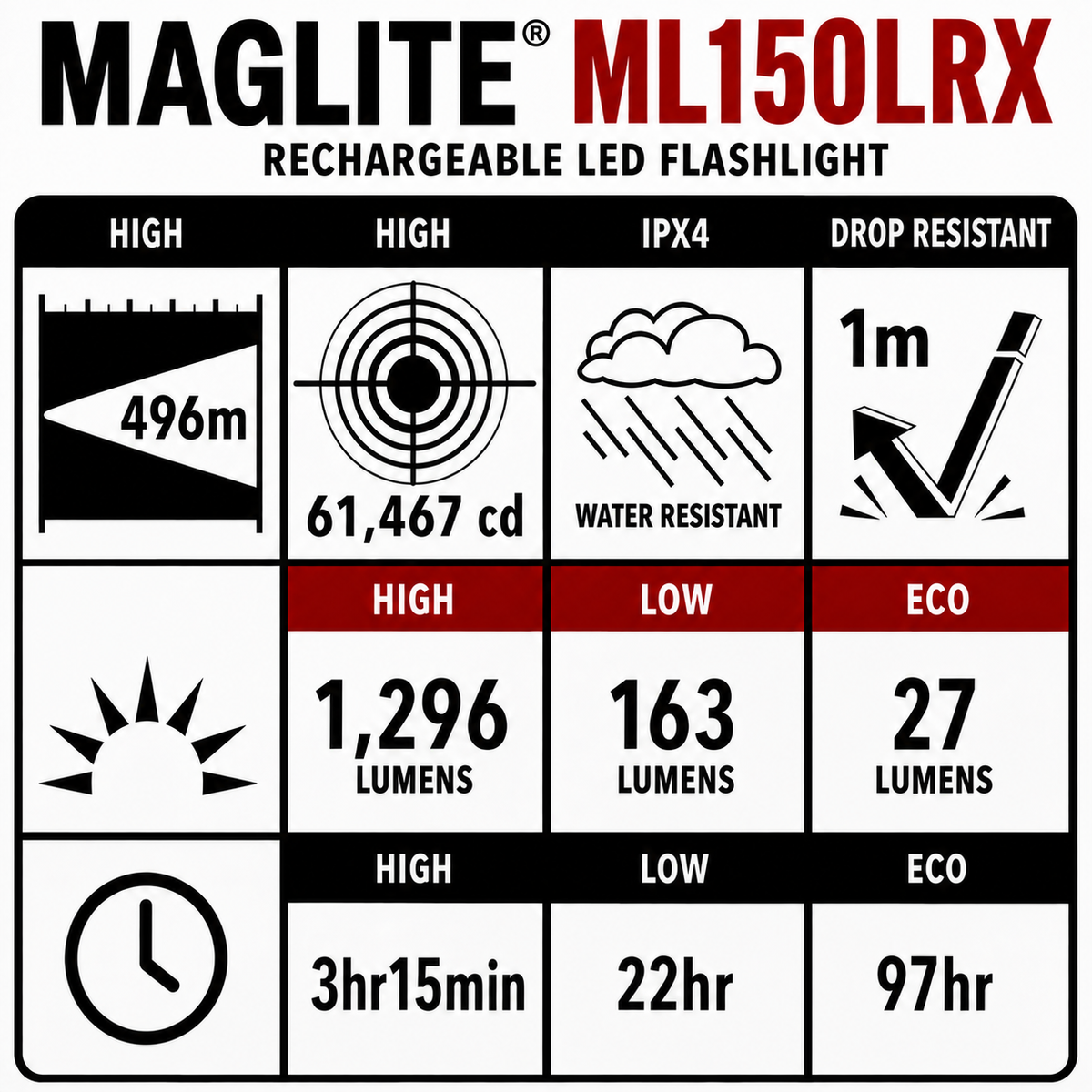

Full Specifications

• Product Name: Maglite® ML150LRX® Rechargeable LED Flashlight

• Product Type: Full-Size Rechargeable LED Flashlight

• Light Source / Technology: LED

• LED Thermal Management: LED Heat-Sink Technology

• Beam Distance: 496 m / approx. 1,627 ft.

• Peak Beam Intensity: 61,467 cd

• Runtime – High: 3 hr. 15 min.

• Runtime – Low: 22 hr.

• Runtime – Eco: 97 hr.

• Maximum Light Output – High: 1,296 lumens

• Light Output – Low: 163 lumens

• Light Output – Eco: 27 lumens

• Focusing System: Quick Focus®

• Beam Adjustment: Adjustable Spot-to-Flood

• Focus Adjustment: Approximately ¼ turn of the head

• Electronic Switch: QuickClik®

• Available Functions: Full Power, Low Power, Eco Mode, Momentary, Strobe

• Number of Function Sets: 4

• General Function Set: Full Power / Low Power / Eco Mode

• Outdoor Function Set: Full Power / Low Power / Strobe

• Law Enforcement Function Set: Momentary / Full Power / Eco Mode

• Tactical Function Set: Momentary / Full Power / Strobe

• Battery Chemistry: Lithium Iron Phosphate / LiFePO4

• Battery Type: Rechargeable

• Battery Included: Yes

• Rechargeable: Yes

• Battery Service Life: Up to 2,000 charge/discharge cycles

• Fast Charging: Approximately 80% charge in about 30 minutes

• Charging Method: Charging Cradle

• Overcharge Protection: Yes

• Available Charging Systems: AC, 12V DC Vehicle, and 12V Wire-Lead Configurations

• Length: 10.687 in. / approx. 271.45 mm

• Head Diameter: 1.937 in. / approx. 49.2 mm

• Weight with Battery: Approx. 15.2 oz.

• Construction: Rugged Anodized Aluminum

• Grip: Textured / Knurled Barrel Grip

• Finish: Matte Black

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Packaging: Chipboard Box

Product Name: Maglite® ML150LRX® Rechargeable LED Flashlight
Product Type: Full-Size Rechargeable LED Flashlight
Light Source / Technology: LED
LED Thermal Management: LED Heat-Sink Technology
Beam Distance: 496 m / approx. 1,627 ft.
Peak Beam Intensity: 61,467 cd
Runtime – High: 3 hr. 15 min.
Runtime – Low: 22 hr.
Runtime – Eco: 97 hr.
Maximum Light Output – High: 1,296 lumens
Light Output – Low: 163 lumens
Light Output – Eco: 27 lumens
Focusing System: Quick Focus®
Beam Adjustment: Adjustable Spot-to-Flood
Focus Adjustment: Approximately ¼ turn of the head
Electronic Switch: QuickClik®
Available Functions: Full Power, Low Power, Eco Mode, Momentary, Strobe
Number of Function Sets: 4
General Function Set: Full Power / Low Power / Eco Mode
Outdoor Function Set: Full Power / Low Power / Strobe
Law Enforcement Function Set: Momentary / Full Power / Eco Mode
Tactical Function Set: Momentary / Full Power / Strobe
Battery Chemistry: Lithium Iron Phosphate / LiFePO4
Battery Type: Rechargeable
Battery Included: Yes
Rechargeable: Yes
Battery Service Life: Up to 2,000 charge/discharge cycles
Fast Charging: Approximately 80% charge in about 30 minutes
Charging Method: Charging Cradle
Overcharge Protection: Yes
Available Charging Systems: AC, 12V DC Vehicle, and 12V Wire-Lead Configurations
Length: 10.687 in. / approx. 271.45 mm
Head Diameter: 1.937 in. / approx. 49.2 mm
Weight with Battery: Approx. 15.2 oz.
Construction: Rugged Anodized Aluminum
Grip: Textured / Knurled Barrel Grip
Finish: Matte Black
Water Resistant: Yes
Water-Resistance Rating: IPX4
Drop Resistance: 1 m / approx. 3.3 ft.
Packaging: Chipboard Box
