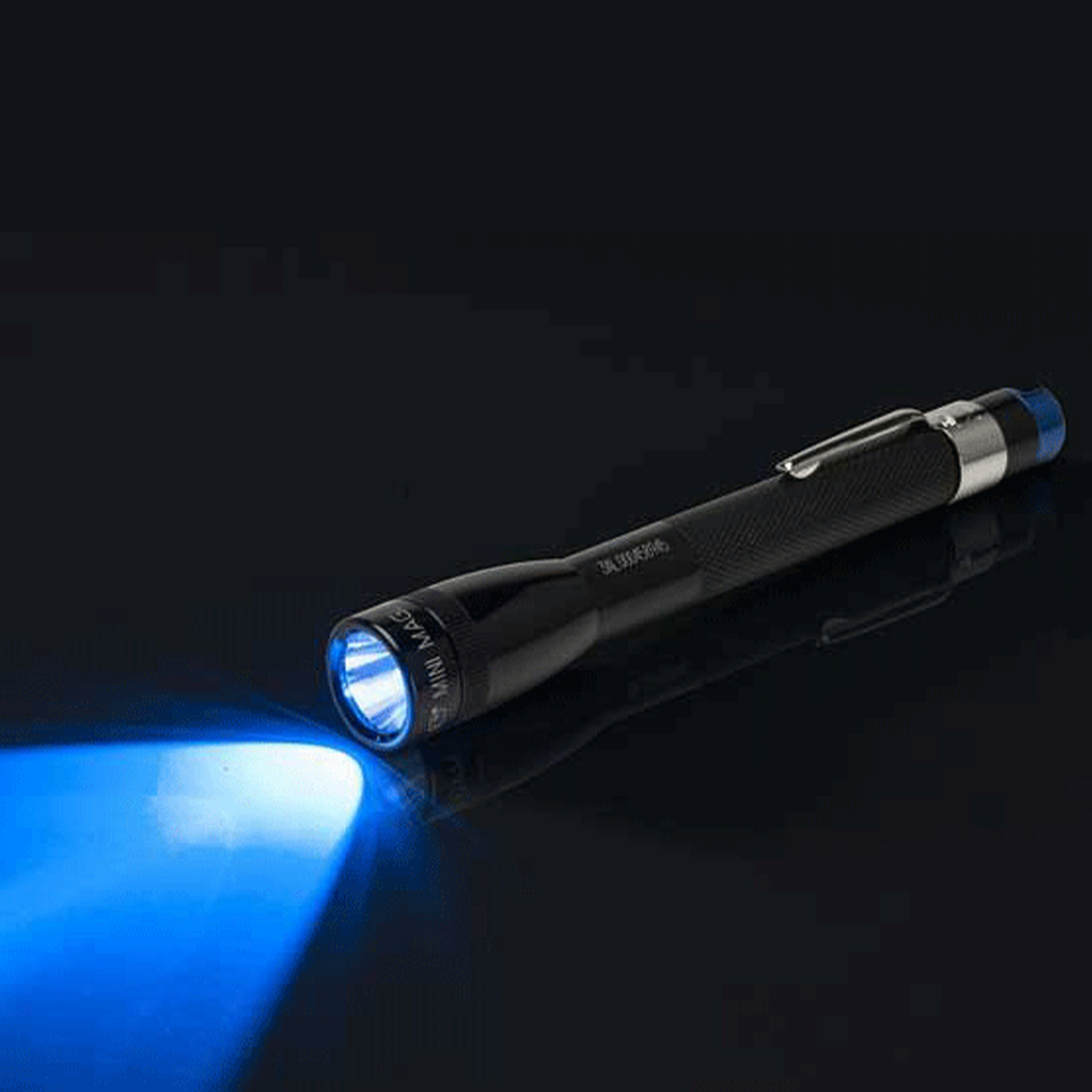

The Maglite® Blue Spectrum Mini Maglite® AAA LED Flashlight is a compact, three-AAA specialty flashlight built around a dedicated blue Spectrum LED. The blue beam is intended for applications where preserving detail and contrast under specialized low-light conditions is important. According to the supplied Spectrum Series material, blue is the preferred light source for pilots and map reading in low- or no-light environments, because it provides strong detail without washing out symbols, notes, or elevation markings. The supplied material also identifies applications including blood tracking for hunters and use by forensic and crime-scene personnel to detect bodily fluids.

The flashlight delivers 31 lumens, a 54-meter beam distance, 731 candela peak beam intensity, and approximately 2 hours 30 minutes of runtime. Its adjustable spot-to-flood beam, hands-free Candle Mode, compact aluminum construction, IPX7 waterproof protection, and 2-meter drop resistance make it a specialized but highly portable illumination tool.

1. Beam and Runtime Capabilities

The Blue Spectrum Mini Maglite® AAA LED produces 31 lumens of blue light. Under the supplied ANSI/PLATO FL 1 specifications, the beam reaches 54 meters (approximately 177 feet) and produces 731 candela of peak beam intensity.

The flashlight uses a single primary Full Power output rather than separate High and Low brightness settings. At its 31-lumen output, the supplied runtime is approximately 2 hours 30 minutes.

• Maximum Output: 31 lumens

• Beam Color: Blue

• Beam Distance: 54 m / approx. 177 ft.

• Peak Beam Intensity: 731 cd

• Runtime – High: 2 hr. 30 min.

• Runtime – Low: N/A

• Runtime – Eco: N/A

• Light Source: Blue Spectrum LED

2. Technology and Features in the Head of the Flashlight

The flashlight uses a specialized Blue Spectrum LED light engine rather than a conventional white LED. The supplied Spectrum Series information describes blue illumination as particularly useful for pilots, including reading maps in low-light or no-light environments. Blue illumination provides detail while helping prevent map symbols, notes, and elevation markers from becoming washed out.

The supplied material also identifies blue light as useful to hunters for blood tracking and to forensic personnel and crime-scene technicians for detecting bodily fluids.

The head incorporates Maglite®'s familiar spot-to-flood adjustable focus. Twisting the head changes the beam from a tighter concentrated spot to a broader flood pattern, allowing the user to adapt the blue illumination to different viewing distances and working areas.

• LED Type: Blue Spectrum LED

• Beam Color: Blue

• Technology: LED

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Maximum Output: 31 lumens

• Beam Distance: 54 m

• Peak Beam Intensity: 731 cd

• Head Diameter: 0.75 in. / 19 mm

3. Power/Mode Functions

Operation uses the traditional Mini Maglite® twist-head interface. The head is twisted to control the flashlight and adjust its beam between spot and flood.

The supplied feature information also identifies Hands-Free Candle Mode for this Mini Maglite® configuration. This allows the light to be configured as a small stationary area light when hands-free illumination is useful.

Unlike electronic multi-mode Maglite models, this flashlight does not provide separate High, Low, Eco, Strobe, or electronically selected brightness modes. Its primary illumination function is the 31-lumen Full Power blue beam.

• Primary Light Mode: Full Power

• Full-Power Output: 31 lumens

• Beam Adjustment: Spot to Flood

• Hands-Free Function: Candle Mode

• High Runtime: 2 hr. 30 min.

• Low Mode: No

• Eco Mode: No

• Electronic Multi-Mode Switching: No

4. Build, Construction and Grip

The Blue Spectrum Mini Maglite® AAA LED uses a compact aluminum flashlight body designed around three AAA batteries. At approximately 5 inches (127 mm) long, it remains small enough for convenient storage in a pocket, equipment pouch, flight bag, field kit, tool kit, vehicle kit, or other compact storage location.

Its narrow 0.5-inch / 12.70 mm barrel maintains the classic Mini Maglite® profile, while the 0.75-inch / 19 mm head provides the rotating control surface used for operation and beam focusing.

The compact proportions and aluminum construction make the flashlight particularly suitable for specialized applications where a dedicated blue light needs to remain readily available without the size of a larger flashlight.

• Construction: Aluminum

• Body Style: Compact / Slim Handheld

• Spectrum Identification: Blue

• Grip: Textured / Knurled Body

• Length: 5 in. / 127 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.75 in. / 19 mm

• Weight with Batteries: 1.73 oz. / 49.04 g

5. Power Source

The Blue Spectrum Mini Maglite® AAA LED operates on three AAA alkaline batteries. The supplied specifications state that alkaline batteries are included.

The flashlight is not rechargeable, so it does not require a charging cable, charging dock, USB connection, or proprietary rechargeable battery. Its replaceable AAA power source can be useful for field, professional, aviation, hunting, or emergency applications where spare batteries can be carried and installed immediately.

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Battery Configuration: 3-Cell AAA

• Batteries Included: Yes

• Rechargeable: No

• High Runtime: 2 hr. 30 min.

• Maximum Output: 31 lumens

6. Protection and Seal

The supplied specifications identify the Blue Spectrum Mini Maglite® AAA LED as IPX7 waterproof and 2-meter drop resistant.

The IPX7 designation corresponds to the flashlight's waterproof construction, while the 2-meter drop-resistance specification adds protection against accidental impacts during handling and field use. Combined with its aluminum body and LED light source, these characteristics support use in demanding portable applications.

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Test Depth: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Housing: Aluminum

• Light Source: Blue Spectrum LED

• Maximum Output: 31 lumens

• Beam Distance: 54 m

• Peak Beam Intensity: 731 cd

Full Specifications

• Product Name: Maglite® Blue Spectrum Mini Maglite® AAA LED Flashlight

• Series: Maglite® Spectrum Series

• Product Type: Compact / Everyday-Carry Pocket-Sized 3-AAA Blue LED Flashlight

• Light Source: Blue Spectrum LED

• Beam Color: Blue

• Maximum Output: 31 lumens

• Beam Distance: 54 m / approx. 177 ft.

• Peak Beam Intensity: 731 cd

• Runtime – High: 2 hr. 30 min.

• Runtime – Low: N/A

• Runtime – Eco: N/A

• Technology: LED

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Hands-Free Function: Candle Mode

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Battery Configuration: 3-Cell AAA

• Batteries Included: Yes

• Rechargeable: No

• Construction: Aluminum

• Spectrum Identification: Blue

• Grip: Textured / Knurled Body

• Length: 5 in. / 127 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.75 in. / 19 mm

• Weight with Batteries: 1.73 oz. / 49.04 g

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Test Depth: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Specialized Applications Identified in the Supplied Material: Pilots, map reading in low-light or no-light environments, viewing map symbols/notes/elevation markers, hunting and blood tracking, forensic work, crime-scene investigation, and bodily-fluid detection

Product Name: Maglite® Blue Spectrum Mini Maglite® AAA LED Flashlight
Series: Maglite® Spectrum Series
Product Type: Compact / Everyday-Carry Pocket-Sized 3-AAA Blue LED Flashlight
Light Source: Blue Spectrum LED
Beam Color: Blue
Maximum Output: 31 lumens
Beam Distance: 54 m / approx. 177 ft.
Peak Beam Intensity: 731 cd
Runtime – High: 2 hr. 30 min.
Runtime – Low: N/A
Runtime – Eco: N/A
Technology: LED
Beam Focus: Adjustable Spot to Flood
Focus Control: Rotating Head
Hands-Free Function: Candle Mode
Battery Type: AAA Alkaline
Battery Quantity: 3
Battery Configuration: 3-Cell AAA
Batteries Included: Yes
Rechargeable: No
Construction: Aluminum
Spectrum Identification: Blue
Grip: Textured / Knurled Body
Length: 5 in. / 127 mm
Barrel Diameter: 0.5 in. / 12.70 mm
Head Diameter: 0.75 in. / 19 mm
Weight with Batteries: 1.73 oz. / 49.04 g
Waterproof: Yes
Water-Protection Rating: IPX7
Waterproof Test Depth: 1 m
Drop Resistance: 2 m / approx. 6.6 ft.
Specialized Applications Identified in the Supplied Material: Pilots, map reading in low-light or no-light environments, viewing map symbols/notes/elevation markers, hunting and blood tracking, forensic work, crime-scene investigation, and bodily-fluid detection
