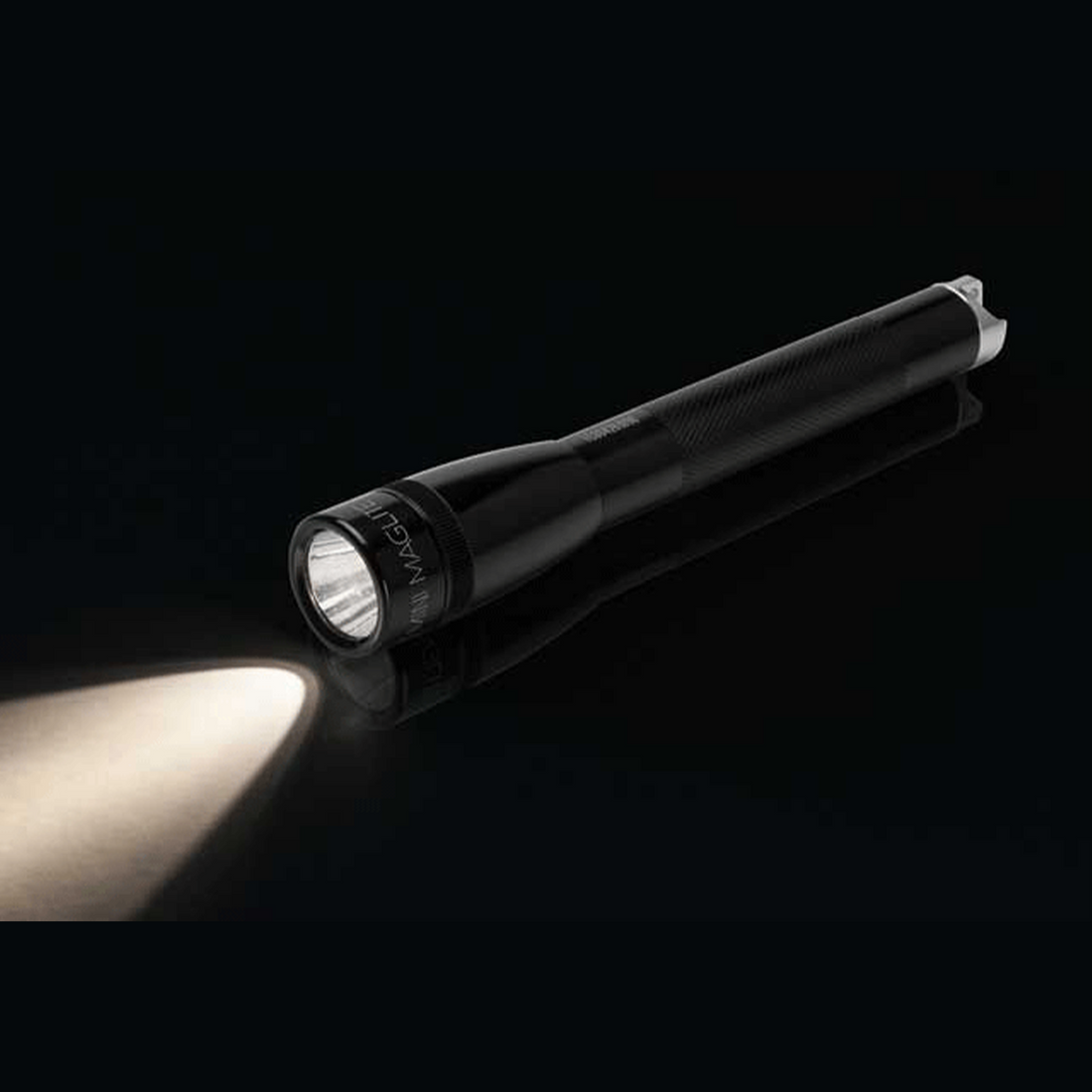

The Maglite® Warm White Spectrum Mini Maglite® AA LED Flashlight is a compact, two-AA specialty flashlight that combines the familiar Mini Maglite® platform with a purpose-built warm white Spectrum LED. Its warm white beam is designed for applications where natural color differentiation, visual comfort, and accurate detail recognition are important. Unlike cooler white LEDs that can make browns, blacks, and reds appear similar, warm white illumination helps preserve color distinctions, making it especially practical for electronics work, wire and cable identification, maintenance, inspections, confined spaces, and extended-duration close-up tasks. The flashlight delivers 57 lumens, a 120-meter beam distance, 3,581 candela peak beam intensity, and up to 33 hours of runtime. Adjustable spot-to-flood focus, LED Heat-Sink Technology, High and Low outputs, aluminum construction, and a water-resistant design provide versatile illumination in a compact handheld format.

1. Beam and Runtime Capabilities

The Warm White Spectrum Mini Maglite® AA LED produces 57 lumens on High, with an ANSI/PLATO FL 1 beam distance of 120 meters (approximately 394 feet) and 3,581 candela peak beam intensity. The warm white LED combines useful beam reach with a warmer light character intended to provide more natural color rendition than conventional cool white illumination.

High mode provides maximum output for greater visibility and longer-distance illumination, while Low mode reduces output to 14 lumens for close-up and less demanding tasks while substantially extending battery life. The flashlight provides approximately 9 hours 15 minutes of runtime on High and 33 hours on Low.

• Maximum Output – High: 57 lumens

• Output – Low: 14 lumens

• Beam Color: Warm White

• Beam Distance: 120 m / approx. 394 ft.

• Peak Beam Intensity: 3,581 cd

• Runtime – High: 9 hr. 15 min.

• Runtime – Low: 33 hr.

• Runtime – Eco: N/A

• Light Source: Warm White Spectrum LED

2. Technology and Features in the Head of the Flashlight

The flashlight uses a specialized Warm White Spectrum LED light engine designed to provide a more natural-looking light than typical cool white LEDs. This is particularly useful when distinguishing colors and fine details is important. Warm white illumination can help technicians differentiate colors on wires, cables, components, markings, and other closely spaced objects, where cooler white light may make certain colors appear more similar.

The warmer light is also suited to working in tight spaces and situations requiring extended flashlight use, where a more natural light can be more visually comfortable.

The LED system incorporates LED Heat-Sink Technology to help manage heat generated by the LED and support dependable operation within the flashlight's aluminum body. Power-management electronics help regulate available battery power during operation.

The head also provides Maglite®'s spot-to-flood adjustable focus. Rotating the head changes the beam from a concentrated spot for greater reach to a broader flood for close-range and wider-area illumination.

• LED Type: Warm White Spectrum LED

• Beam Color: Warm White

• Thermal Management: LED Heat-Sink Technology

• Power Management: Electronic Power Management

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Maximum Output: 57 lumens

• Beam Distance: 120 m

• Peak Beam Intensity: 3,581 cd

• Head Diameter: 1 in. / 25.4 mm

3. Power/Mode Functions

Operation follows the classic Mini Maglite® twist-head interface. Twist the head to turn the flashlight on and off, and rotate the head to adjust the beam between spot and flood. The Warm White Spectrum Mini Maglite® AA LED provides High and Low output levels, allowing the user to choose maximum illumination or reduced brightness with substantially longer runtime.

The flashlight also supports hands-free Candle Mode, providing a stationary area-lighting option for close-up work, emergencies, camp use, maintenance, or situations where both hands are needed.

• Switching: Twist-Head On/Off

• High Output: 57 lumens

• Low Output: 14 lumens

• High Runtime: 9 hr. 15 min.

• Low Runtime: 33 hr.

• Beam Adjustment: Spot to Flood

• Hands-Free Function: Candle Mode

• Eco Mode: No

• Electronic Multi-Mode Tail Switch: No

• Power Management: Electronic Power Management

4. Build, Construction and Grip

The Warm White Spectrum Mini Maglite® AA LED is built around a compact aluminum body measuring approximately 6.607 inches (167.8 mm) long. Its slim barrel and one-inch head provide a practical balance between portability, durability, and secure handheld operation.

The aluminum body incorporates Maglite®'s familiar textured grip pattern, providing a secure gripping surface while also making the rotating head easy to operate for power and beam-focus adjustments. Its compact dimensions make it practical for technician tool kits, maintenance equipment, vehicles, emergency supplies, work bags, field kits, and general-purpose carry.

• Construction: Aluminum

• Body Style: Compact Handheld

• Spectrum Identification: Warm White

• Grip: Textured / Knurled Grip

• Length: 6.607 in. / 167.8 mm

• Barrel Diameter: 0.709 in. / 18 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 4.15 oz. / 117.75 g

5. Power Source

The Warm White Spectrum Mini Maglite® AA LED operates from two AA alkaline batteries, providing a widely available, easily replaceable power source. The two-cell configuration delivers extended operating time while retaining the compact proportions of the Mini Maglite® platform.

AA alkaline batteries are included. The flashlight is not rechargeable, eliminating the need for a charging cable, charging port, dock, or proprietary rechargeable battery. Depleted batteries can simply be replaced, which can be particularly convenient for tool kits, service vehicles, emergency equipment, and field applications.

• Battery Type: AA Alkaline

• Battery Quantity: 2

• Battery Configuration: 2-Cell AA

• Batteries Included: Yes

• Rechargeable: No

• Runtime – High: 9 hr. 15 min.

• Runtime – Low: 33 hr.

• Maximum Output: 57 lumens

6. Protection and Seal

The Warm White Spectrum Mini Maglite® AA LED is designed with a water-resistant construction for use around moisture, rain, and typical outdoor or work-site conditions. The 2-Cell AA model is specified as water resistant, rather than carrying the IPX7 waterproof designation shown for certain other models in the Spectrum Series.

It is also rated for 1-meter drop resistance, providing additional durability against the bumps and accidental drops that can occur during everyday, field, maintenance, and professional use. Its aluminum housing, water-resistant construction, LED light source, and impact resistance make it well suited to regular use as a compact specialty task light.

• Water Resistant: Yes

• Waterproof: Not specified as IPX7

• Water-Protection Rating: Water Resistant

• Drop Resistance: 1 m / approx. 3.3 ft.

• Housing: Aluminum

• Light Source: Warm White Spectrum LED

• Maximum Output: 57 lumens

• Beam Distance: 120 m

• Peak Beam Intensity: 3,581 cd

Full Specifications

• Product Name: Maglite® Warm White Spectrum Mini Maglite® AA LED Flashlight

• Series: Maglite® Spectrum Series

• Product Type: Compact / Everyday-Carry Pocket-Sized 2-AA Warm White LED Flashlight

• Light Source: Warm White Spectrum LED

• Beam Color: Warm White

• Maximum Output – High: 57 lumens

• Output – Low: 14 lumens

• Beam Distance: 120 m / approx. 394 ft.

• Peak Beam Intensity: 3,581 cd

• Runtime – High: 9 hr. 15 min.

• Runtime – Low: 33 hr.

• Runtime – Eco: N/A

• LED Thermal Management: LED Heat-Sink Technology

• Power Management: Electronic Power Management

• Switching: Twist-Head On/Off

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Hands-Free Function: Candle Mode

• Battery Type: AA Alkaline

• Battery Quantity: 2

• Battery Configuration: 2-Cell AA

• Batteries Included: Yes

• Rechargeable: No

• Construction: Aluminum

• Spectrum Identification: Warm White

• Grip: Textured / Knurled Body

• Length: 6.607 in. / 167.8 mm

• Barrel Diameter: 0.709 in. / 18 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 4.15 oz. / 117.75 g

• Water Resistant: Yes

• Waterproof Rating: Not specified as IPX7

• Drop Resistance: 1 m / approx. 3.3 ft.

• Specialized Applications: Electronics work, wire and cable identification, maintenance, inspection, tight and confined spaces, close-up technical work, natural-color viewing, and extended-duration illumination where visual comfort and color differentiation are important

Product Name: Maglite® Warm White Spectrum Mini Maglite® AA LED Flashlight
Series: Maglite® Spectrum Series
Product Type: Compact / Everyday-Carry Pocket-Sized 2-AA Warm White LED Flashlight
Light Source: Warm White Spectrum LED
Beam Color: Warm White
Maximum Output – High: 57 lumens
Output – Low: 14 lumens
Beam Distance: 120 m / approx. 394 ft.
Peak Beam Intensity: 3,581 cd
Runtime – High: 9 hr. 15 min.
Runtime – Low: 33 hr.
Runtime – Eco: N/A
LED Thermal Management: LED Heat-Sink Technology
Power Management: Electronic Power Management
Switching: Twist-Head On/Off
Beam Focus: Adjustable Spot to Flood
Focus Control: Rotating Head
Hands-Free Function: Candle Mode
Battery Type: AA Alkaline
Battery Quantity: 2
Battery Configuration: 2-Cell AA
Batteries Included: Yes
Rechargeable: No
Construction: Aluminum
Spectrum Identification: Warm White
Grip: Textured / Knurled Body
Length: 6.607 in. / 167.8 mm
Barrel Diameter: 0.709 in. / 18 mm
Head Diameter: 1 in. / 25.4 mm
Weight with Batteries: 4.15 oz. / 117.75 g
Water Resistant: Yes
Waterproof Rating: Not specified as IPX7
Drop Resistance: 1 m / approx. 3.3 ft.
Specialized Applications: Electronics work, wire and cable identification, maintenance, inspection, tight and confined spaces, close-up technical work, natural-color viewing, and extended-duration illumination where visual comfort and color differentiation are important
