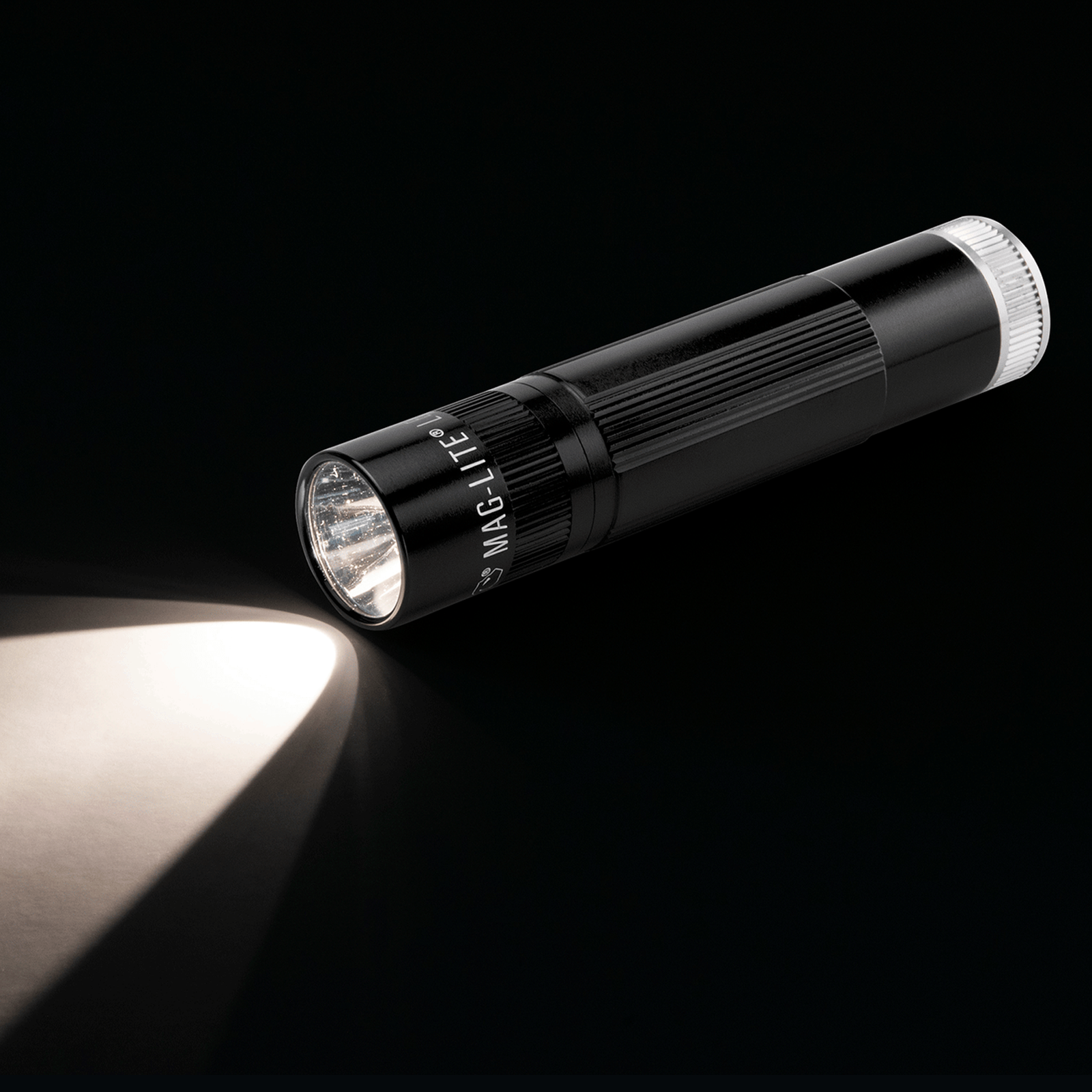

The Maglite® Warm White Spectrum XL50® LED Flashlight is a compact, three-AAA specialty flashlight that combines the XL50® platform with a purpose-built warm white Spectrum LED and convenient electronic tail-cap operation. Its warm white beam is designed to provide more natural color rendering than typical cool-white LEDs, making it especially useful for electronics work, wire and cable identification, inspections, confined spaces, maintenance, repair work, close-detail tasks, and extended-use applications where accurate color recognition is important. The flashlight delivers 140 lumens on High, a 186-meter beam distance, 8,609 candela peak beam intensity, and runtime of 6 hours on High or 31 hours on Low. The QuickClik® electronic switch, multiple operating modes, LED Heat-Sink Technology, aluminum construction, and water-resistant design provide practical performance in a compact handheld package.

1. Beam and Runtime Capabilities

The Warm White Spectrum XL50® LED produces up to 140 lumens of warm white light, with an ANSI/PLATO FL 1 beam distance of 186 meters (approximately 610 feet) and 8,609 candela peak beam intensity. Its warm white output is designed to provide useful illumination while allowing colors and fine details to appear more natural than under many cool-white LED light sources.

The flashlight provides 140 lumens on High with 6 hours of runtime and 24 lumens on Low with up to 31 hours of runtime. This gives the user a choice between maximum output and a lower-output setting suited to close-range work, extended tasks, and battery conservation.

• Maximum Output: 140 lumens

• Low Output: 24 lumens

• Beam Color: Warm White

• Beam Distance: 186 m / approx. 610 ft.

• Peak Beam Intensity: 8,609 cd

• Runtime – High: 6 hr.

• Runtime – Low: 31 hr.

• Runtime – Eco: N/A

• Light Source: Warm White Spectrum LED

2. Technology and Features in the Head of the Flashlight

The flashlight uses a specialized Warm White Spectrum LED light engine rather than a conventional cool-white LED. Warm white illumination allows a broader range of colors to remain visually distinguishable, making it useful when examining colored wires, cables, components, surfaces, and other details where color recognition matters.

The LED system incorporates LED Heat-Sink Technology to help manage heat generated by the LED and support dependable operation within the compact aluminum flashlight. Electronic power management works with the flashlight's multiple output settings to regulate available battery power during operation.

The compact XL50® optical system produces a concentrated warm white beam with 8,609 candela peak intensity and an ANSI-rated beam distance of 186 meters.

• LED Type: Warm White Spectrum LED

• Beam Color: Warm White

• Thermal Management: LED Heat-Sink Technology

• Power Management: Electronic

• Maximum Output: 140 lumens

• Low Output: 24 lumens

• Beam Distance: 186 m

• Peak Beam Intensity: 8,609 cd

• Head Diameter: 1 in. / 25.4 mm

3. Power/Mode Functions

The Warm White Spectrum XL50® LED uses Maglite®'s QuickClik® electronic tail-cap switch, allowing the available functions to be selected directly from the tail cap. The multi-mode electronic interface provides quick access to different lighting functions without requiring a separate side switch.

The flashlight provides Full Power, Low Power, and Strobe functions. Full Power delivers the maximum 140-lumen warm white output. Low Power reduces output to 24 lumens and extends runtime to approximately 31 hours. Strobe provides a flashing-light function for signaling, attention-getting, or emergency applications.

• Switching: QuickClik® Electronic Tail-Cap Switch

• Switching Location: Tail Cap

• Multi-Mode Electronic Switching: Yes

• Full Power: Yes

• Full-Power Output: 140 lumens

• Low Power: Yes

• Low-Power Output: 24 lumens

• Strobe: Yes

• High Runtime: 6 hr.

• Low Runtime: 31 hr.

• Eco Mode: No

• Power Management: Electronic

4. Build, Construction and Grip

The Warm White Spectrum XL50® LED is built around a compact aluminum body designed to provide durability while remaining easy to carry. At approximately 4.8 inches (121.92 mm) long with a 1-inch (25.4 mm) barrel diameter, it fits readily into pockets, tool bags, electronics kits, maintenance equipment, vehicle kits, emergency supplies, and other compact storage locations.

The cylindrical aluminum body incorporates a textured knurled grip for secure handling and control. The compact XL50® configuration positions the QuickClik® electronic switch at the tail cap for convenient operation. The Warm White Spectrum version uses a black body with a silver accent identifying the warm white Spectrum model.

• Construction: Aluminum

• Body Style: Compact

• Body Color: Black

• Spectrum Identification: Silver Accent

• Grip: Textured / Knurled Grip

• Switch Location: Tail Cap

• Length: 4.8 in. / 121.92 mm

• Barrel Diameter: 1 in. / 25.4 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 3.68 oz. / 104 g

5. Power Source

The Warm White Spectrum XL50® LED operates from three AAA alkaline batteries, providing a common, replaceable power source while keeping the flashlight compact and portable.

Three AAA alkaline batteries are included. The flashlight is not rechargeable, so no charging cable, charging port, charging cradle, or proprietary rechargeable battery is required. Depleted batteries can simply be replaced, making the flashlight practical for tool kits, maintenance equipment, electronics work, vehicle storage, emergency supplies, and field applications where immediate replacement power may be preferable to recharging.

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Battery Configuration: 3-Cell AAA

• Batteries Included: Yes

• Rechargeable: No

• Power Management: Electronic

• High Runtime: 6 hr.

• Low Runtime: 31 hr.

• Maximum Output: 140 lumens

• Low Output: 24 lumens

6. Protection and Seal

The Warm White Spectrum XL50® LED is designed with IPX4 water-resistant protection, helping protect the flashlight against water exposure encountered during outdoor, field, maintenance, vehicle, emergency, and everyday use.

The flashlight is also rated for 1-meter drop resistance, adding durability against accidental drops during regular use. Its aluminum housing, water-resistant construction, protected LED system, and impact resistance make it suitable for routine professional and everyday use while retaining the compact dimensions of the XL50® platform.

• Water Resistant: Yes

• Water-Protection Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Housing: Aluminum

• Light Source: Warm White Spectrum LED

• Maximum Output: 140 lumens

• Beam Distance: 186 m

• Peak Beam Intensity: 8,609 cd

Full Specifications

• Product Name: Maglite® Warm White Spectrum XL50® LED Flashlight

• Series: Maglite® Spectrum Series

• Product Type: Compact / Everyday-Carry Pocket-Sized Multi-Mode Warm White LED Flashlight

• Light Source: Warm White Spectrum LED

• Beam Color: Warm White

• Maximum Output: 140 lumens

• Low Output: 24 lumens

• Beam Distance: 186 m / approx. 610 ft.

• Peak Beam Intensity: 8,609 cd

• Runtime – High: 6 hr.

• Runtime – Low: 31 hr.

• Runtime – Eco: N/A

• LED Thermal Management: LED Heat-Sink Technology

• Power Management: Electronic

• Switching: QuickClik® Electronic Tail-Cap Switch

• Switch Location: Tail Cap

• Multi-Mode Electronic Switching: Yes

• Full Power Mode: Yes

• Full-Power Output: 140 lumens

• Low Power Mode: Yes

• Low-Power Output: 24 lumens

• Strobe Mode: Yes

• Eco Mode: No

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Battery Configuration: 3-Cell AAA

• Batteries Included: Yes

• Rechargeable: No

• Construction: Aluminum

• Body Color: Black

• Spectrum Accent: Silver

• Grip: Textured / Knurled Grip

• Length: 4.8 in. / 121.92 mm

• Barrel Diameter: 1 in. / 25.4 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 3.68 oz. / 104 g

• Water Resistant: Yes

• Water-Protection Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Specialized Applications: Electronics work, wire and cable identification, inspection, maintenance and repair, confined spaces, close-detail tasks, tool kits, extended-use work, and applications where natural color differentiation is important

Product Name: Maglite® Warm White Spectrum XL50® LED Flashlight
Series: Maglite® Spectrum Series
Product Type: Compact / Everyday-Carry Pocket-Sized Multi-Mode Warm White LED Flashlight
Light Source: Warm White Spectrum LED
Beam Color: Warm White
Maximum Output: 140 lumens
Low Output: 24 lumens
Beam Distance: 186 m / approx. 610 ft.
Peak Beam Intensity: 8,609 cd
Runtime – High: 6 hr.
Runtime – Low: 31 hr.
Runtime – Eco: N/A
LED Thermal Management: LED Heat-Sink Technology
Power Management: Electronic
Switching: QuickClik® Electronic Tail-Cap Switch
Switch Location: Tail Cap
Multi-Mode Electronic Switching: Yes
Full Power Mode: Yes
Full-Power Output: 140 lumens
Low Power Mode: Yes
Low-Power Output: 24 lumens
Strobe Mode: Yes
Eco Mode: No
Battery Type: AAA Alkaline
Battery Quantity: 3
Battery Configuration: 3-Cell AAA
Batteries Included: Yes
Rechargeable: No
Construction: Aluminum
Body Color: Black
Spectrum Accent: Silver
Grip: Textured / Knurled Grip
Length: 4.8 in. / 121.92 mm
Barrel Diameter: 1 in. / 25.4 mm
Head Diameter: 1 in. / 25.4 mm
Weight with Batteries: 3.68 oz. / 104 g
Water Resistant: Yes
Water-Protection Rating: IPX4
Drop Resistance: 1 m / approx. 3.3 ft.
Specialized Applications: Electronics work, wire and cable identification, inspection, maintenance and repair, confined spaces, close-detail tasks, tool kits, extended-use work, and applications where natural color differentiation is important
