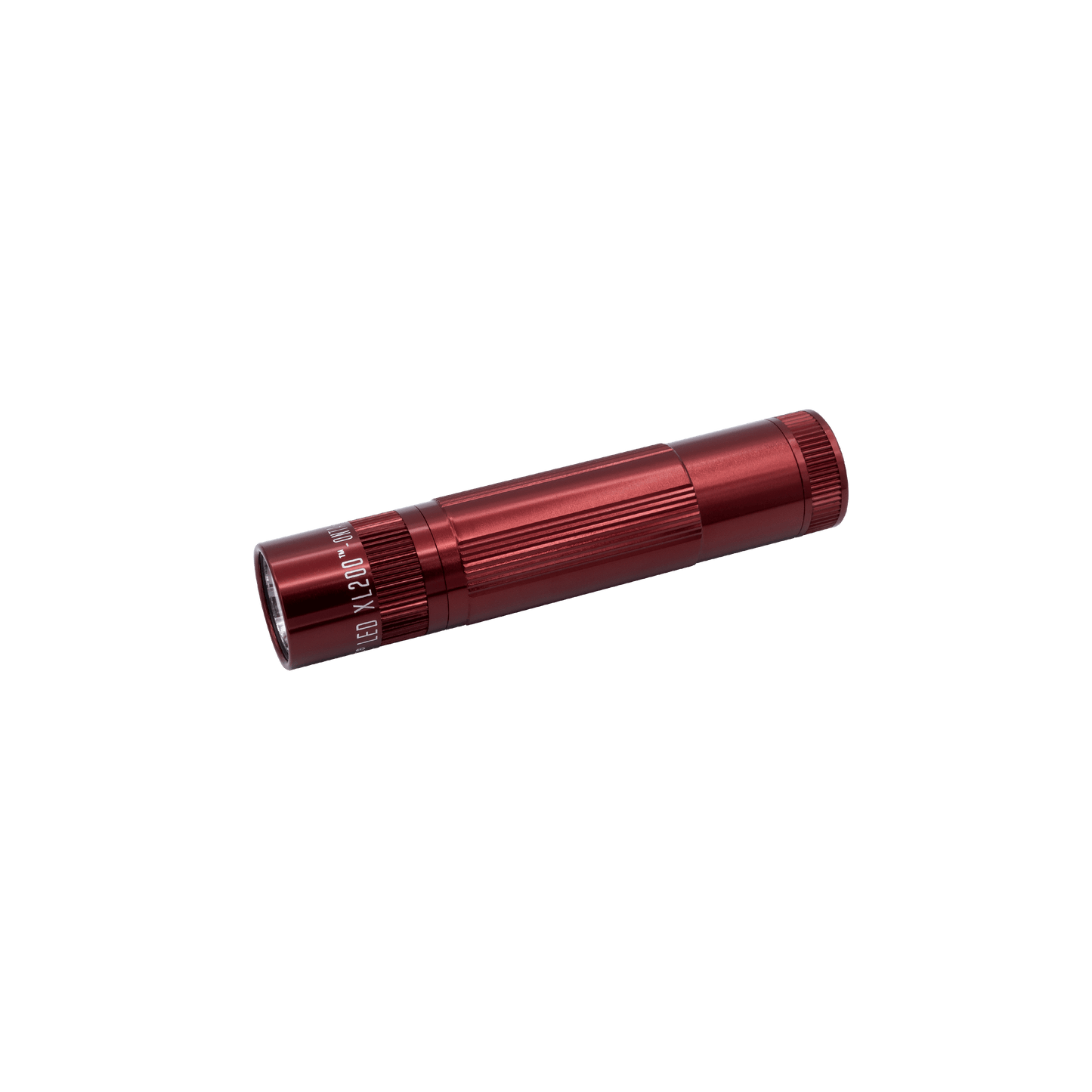

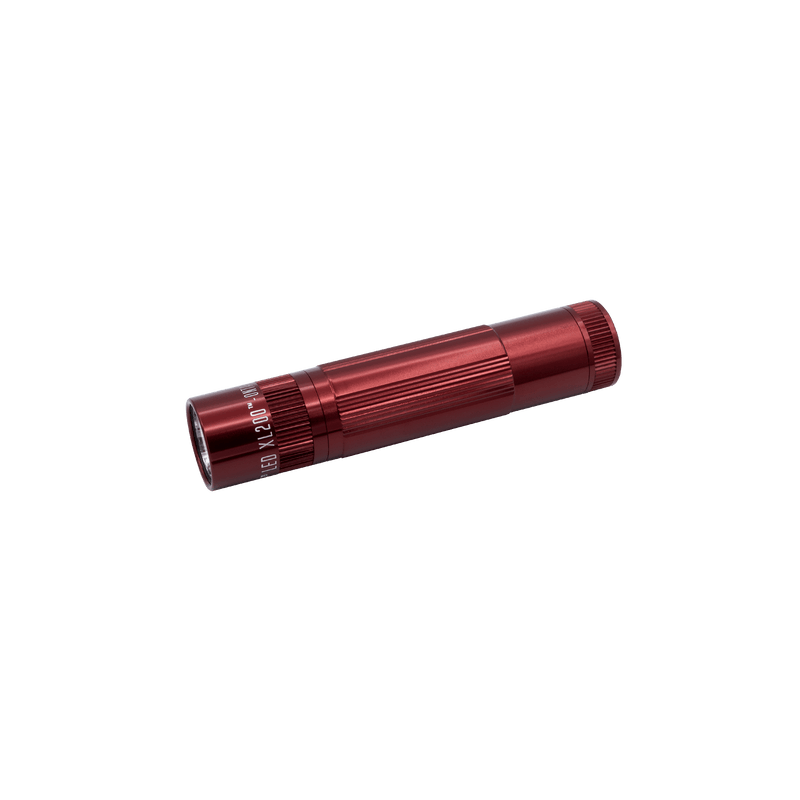

The Maglite® XL200® LED Flashlight is a compact, pocket-size LED flashlight engineered for versatile everyday illumination with advanced motion-controlled functions. Using the latest ANSI performance data, it delivers a 176-meter beam distance, 7,712 candela peak beam intensity, and 264 lumens maximum output. High provides approximately 3 hours 30 minutes of runtime, while Low can provide up to 182 hours. Five primary operating functions—Full Power, Strobe, Nite Lite, Morse Code Signal, and SOS—combine with motion-controlled brightness and strobe adjustment, setting memory, and lockout capability. Next-generation MAG-LED® technology, LED Heat-Sink Technology, dynamic power management, adjustable spot-to-flood focusing, QuickClik® tail-cap switching, an inertial motion-control system, rugged anodized machined-aluminum construction, three included AAA alkaline batteries, IPX4 water resistance, and 1-meter drop resistance make the XL200® practical for everyday carry, home, work, outdoor, vehicle, signaling, and emergency use.

1. 176-Meter Beam Reach, 7,712 Candela & Up to 182-Hour Runtime

The Maglite® XL200® combines compact dimensions with a projecting LED beam capable of reaching 176 meters (approximately 577 feet). Peak beam intensity is 7,712 candela, providing concentrated center-beam intensity for illuminating objects and areas at distance.

High provides approximately 3 hours 30 minutes of runtime. At its low-output setting, the XL200® can provide up to 182 hours of runtime for applications where maximum brightness is not required. Maximum output according to the latest ANSI performance data is 264 lumens.

• Beam Distance: 176 m / approx. 577 ft.

• Peak Beam Intensity: 7,712 cd

• Runtime – High: 3 hr. 30 min.

• Runtime – Low: Up to 182 hr.

• Maximum Output: 264 lumens

• Light Source: LED

2. MAG-LED® Technology, LED Heat-Sink Technology & Adjustable Focusing Head

The XL200® uses next-generation MAG-LED® technology with LED Heat-Sink Technology to help manage heat generated by the LED and support dependable operation. Dynamic power management electronically manages available battery power as the flashlight operates.

Its rotating head provides adjustable spot-to-flood focusing, allowing the beam pattern to be changed from a concentrated spot for distance to a broader flood for closer-area illumination. This gives the compact XL200® flexibility for both long-range and general-purpose lighting.

• Light Source / Technology: LED / MAG-LED®

• Thermal Management: LED Heat-Sink Technology

• Power Management: Dynamic

• Focus System: Adjustable Spot-to-Flood Beam

• Beam Distance: 176 m

• Peak Beam Intensity: 7,712 cd

• Maximum Output: 264 lumens

• Head Diameter: 1 in. / 25.4 mm

3. IPX4 Water Resistance, Weather-Resistant Seals & 1-Meter Drop Resistance

The Maglite® XL200® is IPX4 water resistant, providing protection against splashing water for use in rain and other wet everyday conditions. Weather-resistant seals, including sealing at the head and tail-cap areas, help protect the internal battery, electronics, and LED system from environmental exposure.

The flashlight is also rated for 1-meter drop resistance. Combined with its rugged anodized machined-aluminum housing and compact construction, these features make the XL200® suitable for everyday carry, outdoor activity, work, emergency preparedness, and vehicle use.

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Weather Protection: Weather-Resistant Seals

• Head Seal: Yes

• Tail-Cap Seal: Yes

• Drop Resistance: 1 m / approx. 3.3 ft.

• Housing: Anodized Machined Aluminum

• Beam Distance: 176 m

• Peak Beam Intensity: 7,712 cd

• Maximum Output: 264 lumens

4. Rugged Anodized Machined Aluminum Construction, Tactile Grip & Pocket-Size Design

The Maglite® XL200® is built around a rugged machined-aluminum body with an anodized finish for durability and corrosion resistance. Its compact cylindrical design incorporates tactile machined knurling and textured gripping surfaces that provide a secure hold while also supporting operation of the rotating focus and motion-controlled functions.

At approximately 4.8 inches long and 1 inch in diameter, the XL200® maintains a short, easily grippable profile suitable for pocket, pack, vehicle, or equipment storage. With batteries installed, it weighs approximately 3.68 ounces / 104 grams.

• Construction: Rugged Machined Aluminum

• Finish: Anodized for Durability and Corrosion Resistance

• Grip: Tactile Machined Knurl / Textured Grip Surfaces

• Design: Compact, Pocket Size

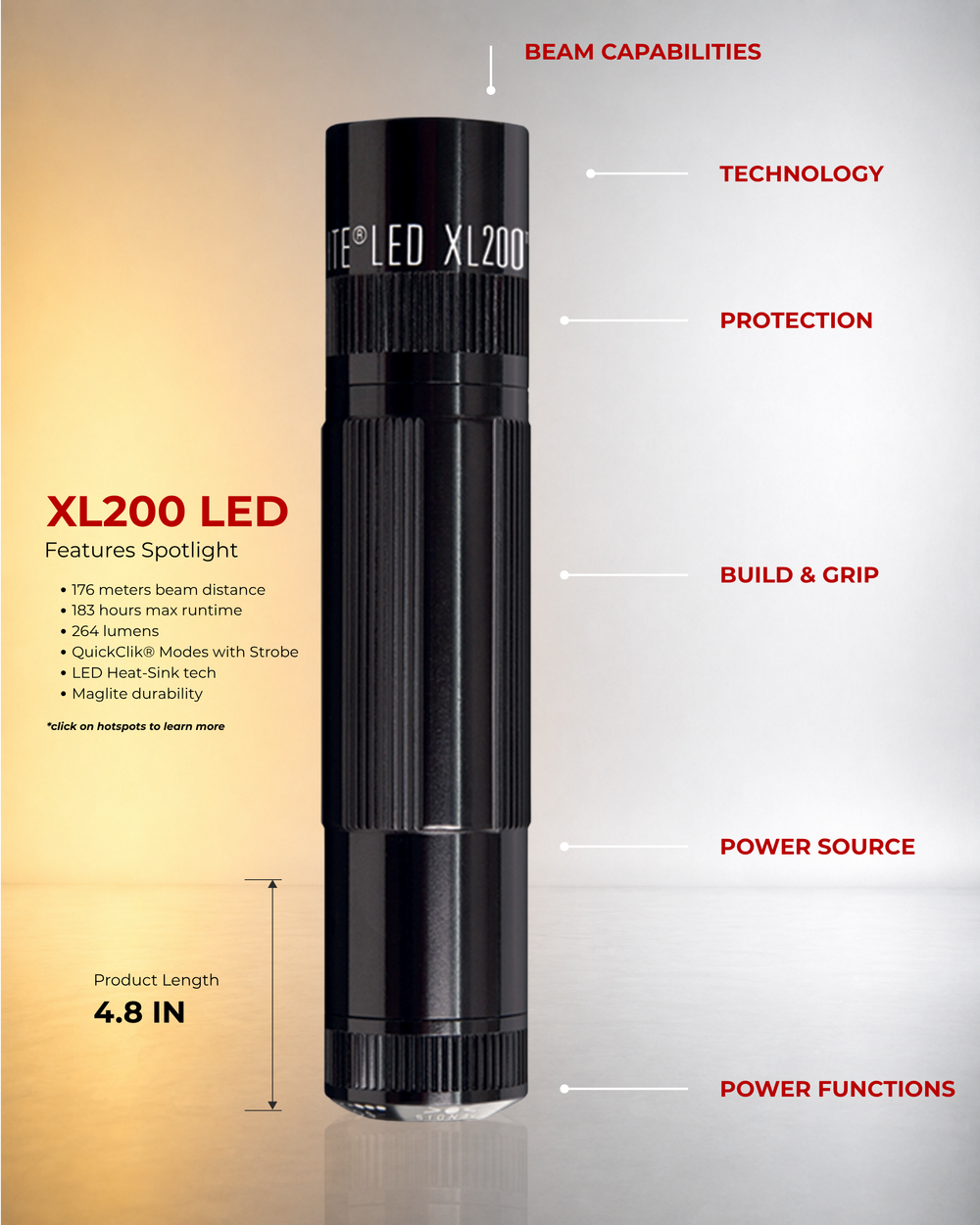

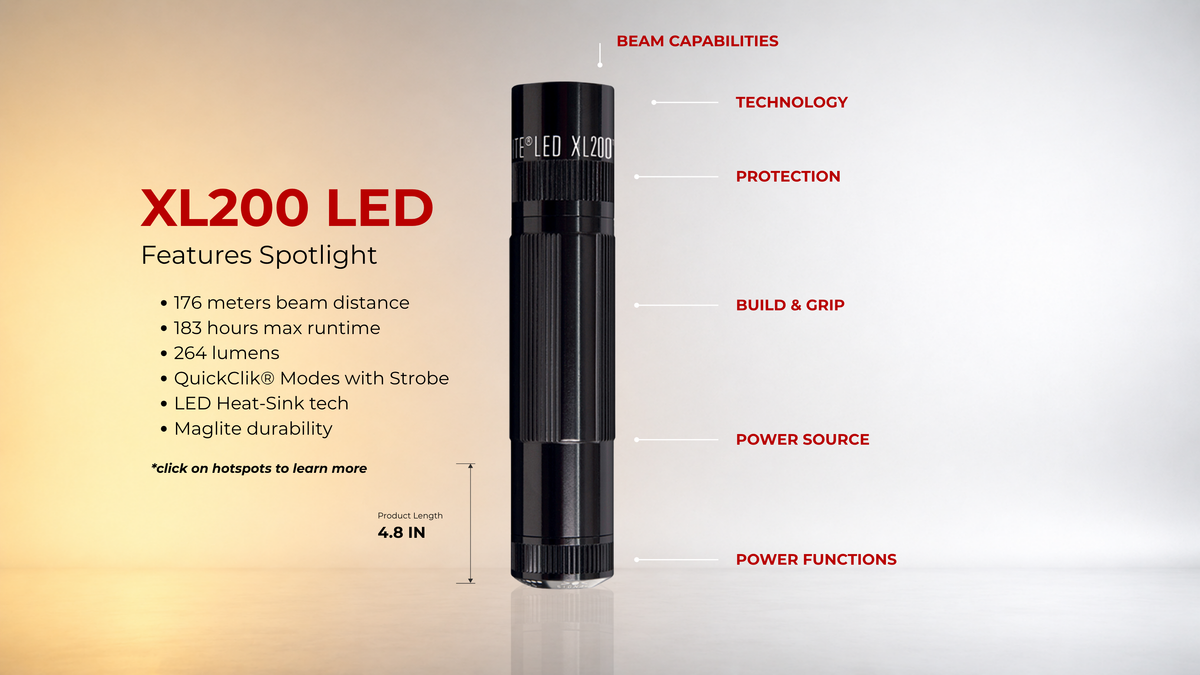

• Length: 4.8 in. / 121.92 mm

• Barrel Diameter: 1 in. / 25.4 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 3.68 oz. / 104 g

• Maximum Output: 264 lumens

5. Three AAA Alkaline Batteries for Convenient Replaceable Power

The XL200® operates on three AAA alkaline batteries, which are included. The three cells are carried in a compact battery holder, allowing the flashlight to maintain its short body configuration while using commonly available replaceable batteries.

The XL200® is not rechargeable. Fresh AAA alkaline cells can be installed whenever required, making the flashlight practical for emergency kits, vehicles, travel, work gear, home use, and other applications where replacement batteries can be stored or carried.

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Batteries Included: Yes

• Battery Configuration: 3-Cell AAA

• Rechargeable: No

• Power Management: Dynamic

• Runtime – High: 3 hr. 30 min.

• Runtime – Low: Up to 182 hr.

• Maximum Output: 264 lumens

6. Five Functions with QuickClik® Switching & Motion-Controlled Adjustments

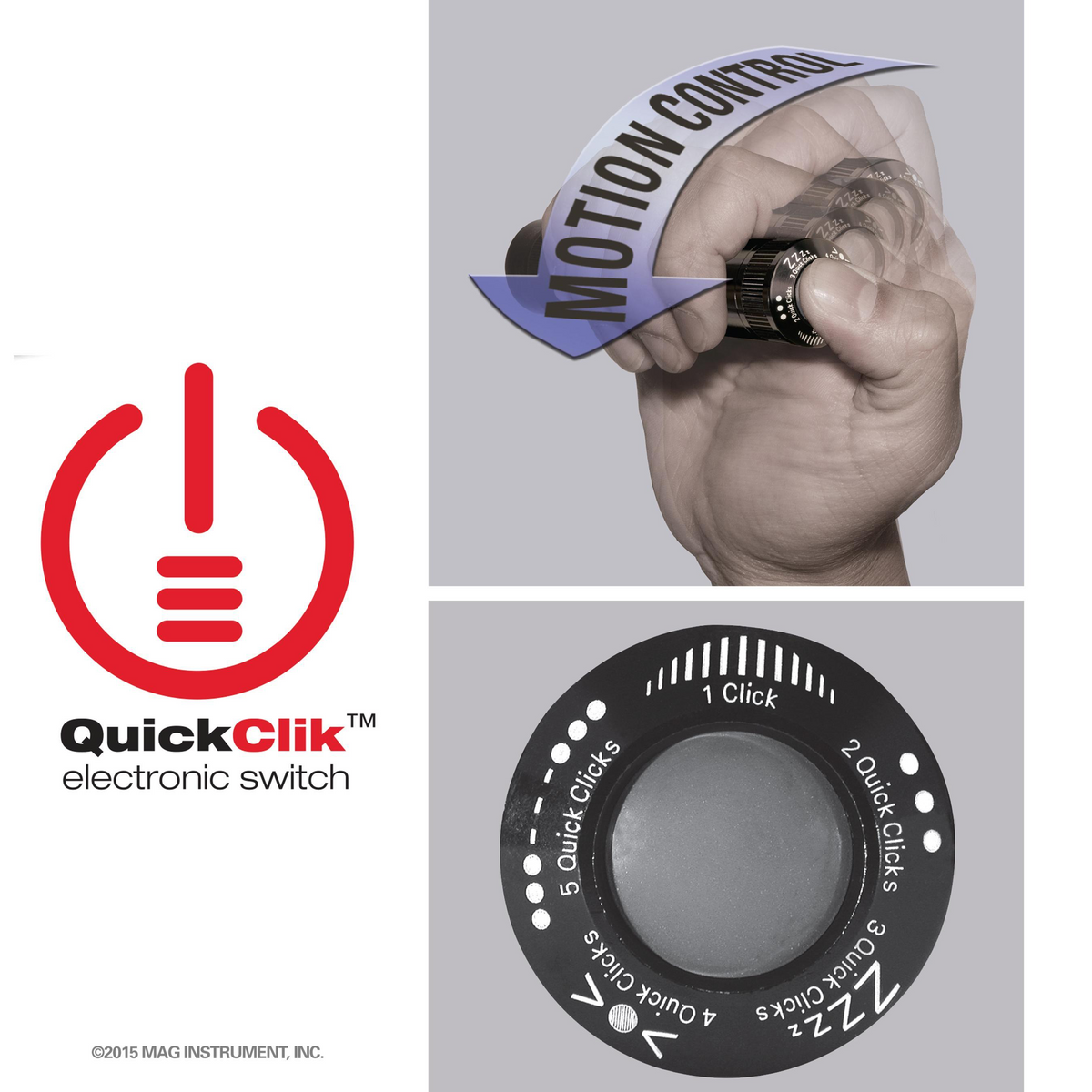

The XL200® combines a pushbutton tail-cap QuickClik® electronic switch with an inertial motion-control system. The tail-cap switch selects the flashlight's five primary functions, while rotation of the flashlight is used to make adjustments within applicable modes.

Full Power provides maximum illumination and allows continuous adjustment between bright and dim, with the selected level remembered for subsequent use. Strobe Mode provides a flashing signal with a user-adjustable flash rate. Nite Lite Mode starts bright, gradually dims, and remains ready to illuminate again when the flashlight is touched or moved. Morse Code Signal Mode enables user-controlled visible short and long flashes for signaling. SOS Mode automatically produces the internationally recognized SOS flashing sequence. A lockout feature helps prevent accidental activation.

• Switching System: QuickClik® Electronic Pushbutton Tail-Cap Switch

• Number of Primary Functions: 5

• Operating Functions: Full Power / Strobe / Nite Lite / Morse Code Signal / SOS

• Full Power: Continuously adjustable brightness with setting memory

• Strobe: User-adjustable flashing rate with setting memory

• Nite Lite: Dims while stationary and responds to touch or movement

• Morse Code Signal: User-controlled short and long visible flashes

• SOS: Automatic continuous SOS flashing signal

• Motion Control: Inertial rotation-based adjustment system

• Lockout: Helps prevent accidental activation

• Runtime – High: 3 hr. 30 min.

• Runtime – Low: Up to 182 hr.

• Maximum Output: 264 lumens

Full Specifications

• Product Name: Maglite® XL200® LED Flashlight

• Product Type: Compact / Everyday-Carry Pocket-Size Multi-Mode LED Flashlight

• Light Source: LED

• LED Technology: Next-Generation MAG-LED® Technology

• LED Thermal Management: LED Heat-Sink Technology

• Beam Distance: 176 m / approx. 577 ft.

• Peak Beam Intensity: 7,712 cd

• Runtime – High: 3 hr. 30 min.

• Runtime – Low: Up to 182 hr.

• Maximum / High Output: 264 lumens

• Number of Primary Functions: 5

• Operating Functions: Full Power / Strobe / Nite Lite / Morse Code Signal / SOS

• Full Power: Continuously adjustable brightness with setting memory

• Strobe Mode: User-adjustable flash rate with setting memory

• Nite Lite Mode: Starts bright, gradually dims, and responds to touch or movement

• Morse Code Signal Mode: User-controlled visible short and long flashes

• SOS Mode: Automatic continuous SOS flashing sequence

• Motion Control: Inertial rotation-based control

• Brightness Memory: Yes

• Strobe-Rate Memory: Yes

• Lockout Feature: Yes

• Switching System: QuickClik® Electronic Pushbutton Tail-Cap Switch

• Power Management: Dynamic

• Focus System: Adjustable Spot-to-Flood Beam

• Battery Type: AAA Alkaline

• Battery Quantity: 3

• Batteries Included: Yes

• Rechargeable: No

• Construction: Rugged Machined Aluminum

• Finish: Anodized for Durability and Corrosion Resistance

• Grip: Tactile Machined Knurl / Textured Grip Surfaces

• Design: Compact, Pocket Size

• Length: 4.8 in. / 121.92 mm

• Barrel Diameter: 1 in. / 25.4 mm

• Head Diameter: 1 in. / 25.4 mm

• Weight with Batteries: 3.68 oz. / 104 g

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Weather-Resistant Seals: Yes

• Drop Resistance: 1 m / approx. 3.3 ft.

• Available Color: Limited Time Colors

• Certification / Recommendation: National Tactical Officers Association (NTOA) Member Tested and Recommended

Product Name: Maglite® XL200® LED Flashlight
Product Type: Compact / Everyday-Carry Pocket-Size Multi-Mode LED Flashlight
Light Source: LED
LED Technology: Next-Generation MAG-LED® Technology
LED Thermal Management: LED Heat-Sink Technology
Beam Distance: 176 m / approx. 577 ft.
Peak Beam Intensity: 7,712 cd
Runtime – High: 3 hr. 30 min.
Runtime – Low: Up to 182 hr.
Maximum / High Output: 264 lumens
Number of Primary Functions: 5
Operating Functions: Full Power / Strobe / Nite Lite / Morse Code Signal / SOS
Full Power: Continuously adjustable brightness with setting memory
Strobe Mode: User-adjustable flash rate with setting memory
Nite Lite Mode: Starts bright, gradually dims, and responds to touch or movement
Morse Code Signal Mode: User-controlled visible short and long flashes
SOS Mode: Automatic continuous SOS flashing sequence
Motion Control: Inertial rotation-based control
Brightness Memory: Yes
Strobe-Rate Memory: Yes
Lockout Feature: Yes
Switching System: QuickClik® Electronic Pushbutton Tail-Cap Switch
Power Management: Dynamic
Focus System: Adjustable Spot-to-Flood Beam
Battery Type: AAA Alkaline
Battery Quantity: 3
Batteries Included: Yes
Rechargeable: No
Construction: Rugged Machined Aluminum
Finish: Anodized for Durability and Corrosion Resistance
Grip: Tactile Machined Knurl / Textured Grip Surfaces
Design: Compact, Pocket Size
Length: 4.8 in. / 121.92 mm
Barrel Diameter: 1 in. / 25.4 mm
Head Diameter: 1 in. / 25.4 mm
Weight with Batteries: 3.68 oz. / 104 g
Water Resistant: Yes
Water-Resistance Rating: IPX4
Weather-Resistant Seals: Yes
Drop Resistance: 1 m / approx. 3.3 ft.
Available Color: Limited Time Colors
Certification / Recommendation: National Tactical Officers Association (NTOA) Member Tested and Recommended

Mag Instrument’s (Maglite®) only factory in Southern California is, and always has been. Our entire manufacturing workforce – from product-development engineers to automation specialists to machinists — reports to work there, as it always has. However, we can’t make every part, component, and accessory under our roof.  When we have to go outside, our strong preference is to procure such parts from a maker that is not only domestic but, if possible, local.

But in this age of trade globalization, it is not always practical for the manufacturer of any product of any complexity to procure all the needed parts and components domestically.  In addition to price, there are other and often far more important considerations, like consistent quality and stability in the supply chain.  We have even faced situations where no potential domestic supplier was interested in bidding on a part- or component-supply contract.  And so it is necessary, from time to time, to go overseas for a part or component, as much as we do not like to do that.

So when we say we are “A U.S.A. Manufacturer” whose flashlights are “Built In America,” we do not mean that no part, component, or accessory of one of our flashlights is ever imported. What we  DO mean is that our flashlights are, and always have been, invented, designed, and engineered in America and assembled in and shipped from our American factory where all of the body parts and most of the other parts are made, even if some parts, components, and accessories may need to be sourced from an overseas supplier.  And when our product includes some foreign content, we duly note that on the package labeling.

In this way, we strive to save as many American jobs as possible by keeping our manufacturing as American as it can be and still yield a reliable supply of a product of the quality our consumers demand at a price they will accept.

Mag Instrument, Inc. warrants to the original owner that this flashlight is free from defects in parts and workmanship for ten years from the date of first retail purchase.  Mag or an authorized Mag Warranty Service Center will, free of charge, repair or, at its option, replace a defective flashlight or component. (Mag does not warrant the future availability of particular colors or decorations, and may replace a custom flashlight with a standard flashlight.)  This warranty is in lieu of all other warranties, express or implied.

EXCLUSIONS: This warranty does not cover any of the following: 1. Battery exhaustion; 2. Battery leakage; 3. LED burnout and/or LED module failure; or 4. Damage to or failure of the flashlight or any component thereof due to alteration, misuse, battery leakage or lack of maintenance.

Mag Disclaims any responsibility for incidental or consequential damages. Some jurisdictions (countries, provinces, and states) do not allow exclusion or limitation of implied warranties, incidental or consequential damages and/or limitations on transferability, so the above limitations and exclusions may not apply to you.

HOW AND WHEN TO MAKE A WARRANTY CLAIM: 1. In case of battery exhaustion, do not return the flashlight to Mag, but replace the batteries. 2. If the flashlight has been damaged by leakage of batteries, do not return the flashlight to Mag, but determine what brand of battery caused the damage and follow the battery manufacturer’s instructions about how to make a damage claim. 3. For warranty returns: Send the flashlight (postage or shipping prepaid) to Mag Instrument, 2001 South Hellman Avenue - 50600, Ontario, California, USA 91761-8019, Attention: Warranty/Repair Department, or to an authorized Mag Warranty Service Center. For the location of an authorized Mag Warranty Service Center in your area, consult the retailer where you purchased the flashlight or see the customer service section at www.maglite.com. For your protection and to expedite handling and/or postal claims, we recommend that all returns be insured and sent Certified and/or Return Receipt Requested. Do not send batteries with flashlights.

This warranty gives you specific legal rights, and you may have other rights which vary from country to country, province to province, and state to state. Where any term of this warranty is prohibited by the law of any jurisdiction, such term shall there be null and void, but the remainder of this warranty shall remain in full force and effect. THESE STATEMENTS DO NOT AFFECT THE STATUTORY RIGHTS OF A CONSUMER.
