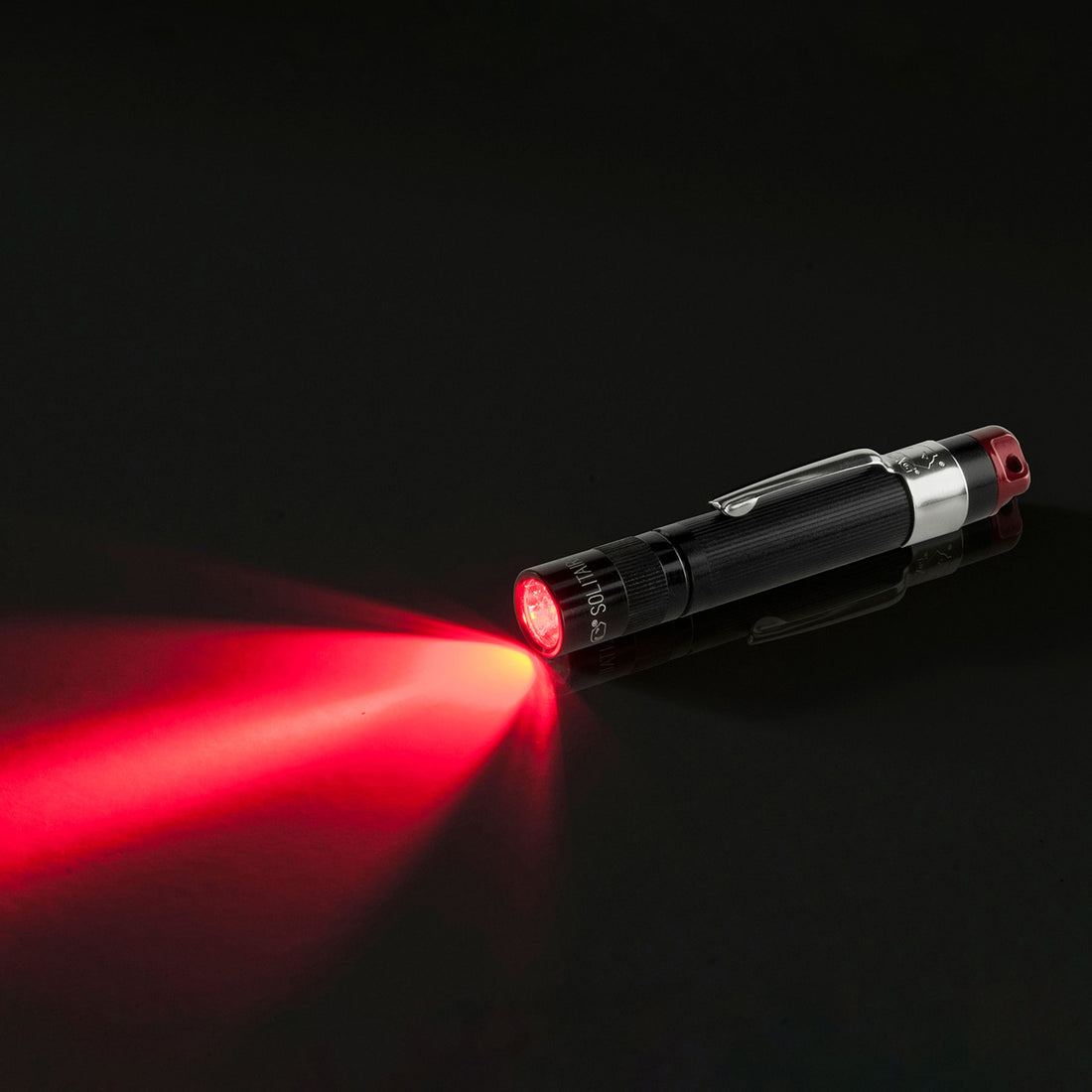

The Maglite® Red Spectrum Solitaire® LED Flashlight is an ultra-compact, single-AAA specialty flashlight that combines the familiar Solitaire® form with a purpose-built red Spectrum LED. The red beam is designed for applications where red illumination offers advantages over conventional white light, including protecting night vision, reducing eye strain in low-level-light conditions, viewing fine details with enhanced contrast, aircraft cockpit use, truck cab use, confined-space work, nighttime navigation, astronomy, and other tasks where maintaining dark adaptation is important. Small enough for a pocket, keychain, flight bag, field kit, tool kit, or emergency kit, it delivers 33 lumens, a 35-meter beam distance, 304 candela peak beam intensity, and 1 hour of runtime. Adjustable spot-to-flood focus, LED Heat-Sink Technology, basic power management, aluminum construction, and IPX7 waterproof protection provide practical performance in an exceptionally compact package.

1. Beam and Runtime Capabilities

The Red Spectrum Solitaire® LED produces 33 lumens of red light, with an ANSI/PLATO FL 1 beam distance of 35 meters (approximately 115 feet) and 304 candela peak beam intensity. Rather than being designed simply to maximize conventional white-light brightness, its red output provides specialized illumination for situations where maintaining night vision and reducing the disruptive effects of bright white light are important.

Red light is particularly useful in low-light environments because it can help preserve a user's dark adaptation while providing enough illumination for navigation, equipment checks, reading, and close-range tasks. The flashlight delivers approximately 1 hour of runtime at its primary output.

• Maximum Output: 33 lumens

• Beam Color: Red

• Beam Distance: 35 m / approx. 115 ft.

• Peak Beam Intensity: 304 cd

• Runtime – High: 1 hr.

• Runtime – Low: N/A

• Runtime – Eco: N/A

• Light Source: Red Spectrum LED

2. Technology and Features in the Head of the Flashlight

The flashlight uses a specialized Red Spectrum LED light engine rather than a conventional white LED. The red wavelength provides task-specific illumination for pilots, drivers, technicians, outdoor users, astronomers, field personnel, and other users who need useful illumination while minimizing interference with night vision.

The LED system incorporates LED Heat-Sink Technology to help manage heat produced by the LED and support dependable operation within the flashlight's compact aluminum body. Basic power management regulates available battery power during operation.

The head also provides Maglite®'s spot-to-flood adjustable focus. Rotating the head changes the beam from a tighter spot for directing red light at a specific area to a broader flood for closer and wider-area illumination.

• LED Type: Red Spectrum LED

• Beam Color: Red

• Thermal Management: LED Heat-Sink Technology

• Power Management: Basic

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Maximum Output: 33 lumens

• Beam Distance: 35 m

• Peak Beam Intensity: 304 cd

• Head Diameter: 0.5 in. / 12.70 mm

3. Power/Mode Functions

Operation follows the simple twist-head design of the Solitaire® platform. Twist the head to turn the flashlight on and off, and continue rotating the head to adjust the beam between spot and flood. There is no separate electronic push-button switch or complicated mode sequence.

The Red Spectrum Solitaire® LED provides one primary Full Power output rather than separate High, Low, and Eco brightness settings. The design also supports hands-free Candle Mode, allowing the flashlight to serve as a small stationary area light when hands-free red illumination is useful.

• Switching: Twist-Head On/Off

• Primary Light Mode: Full Power

• Full-Power Output: 33 lumens

• Beam Adjustment: Spot to Flood

• Hands-Free Function: Candle Mode

• High Runtime: 1 hr.

• Low Mode: No

• Eco Mode: No

• Electronic Multi-Mode Switching: No

• Power Management: Basic

4. Build, Construction and Grip

The Red Spectrum Solitaire® LED is built around a compact aluminum body measuring only 3-3/16 inches (81 mm) long. Its slim 1/2-inch-diameter profile makes it practical for keychain carry, pockets, flight bags, truck cabs, outdoor equipment, field kits, emergency kits, astronomy gear, and professional tool bags.

The cylindrical body incorporates a deeply grooved textured grip for secure handling and easier rotation of the head during power and focus adjustments. The flashlight has a black body with a red-accented tail cap identifying the red Spectrum LED, along with a key ring/lanyard attachment for convenient carry.

• Construction: Aluminum

• Body Style: Compact / Keychain Size

• Body Color: Black

• Spectrum Identification: Red Tail-Cap Accent

• Grip: Deeply Grooved Textured Body

• Key Ring/Lanyard Attachment: Yes

• Length: 3-3/16 in. / 81 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.5 in. / 12.70 mm

• Weight with Battery: 0.8 oz. / 22.67 g

5. Power Source

The Red Spectrum Solitaire® LED operates from one AAA alkaline battery, providing a simple and widely available power source while keeping the flashlight exceptionally compact.

One AAA alkaline battery is included. The flashlight is not rechargeable, so no charging cable, charging port, or proprietary rechargeable battery is required. A depleted battery can simply be replaced, making the flashlight convenient for flight bags, vehicle kits, field equipment, emergency kits, astronomy gear, and professional tool bags where immediate battery replacement may be preferable to waiting for a rechargeable light to charge.

• Battery Type: AAA Alkaline

• Battery Quantity: 1

• Battery Configuration: 1-Cell AAA

• Battery Included: Yes

• Rechargeable: No

• Power Management: Basic

• High Runtime: 1 hr.

• Maximum Output: 33 lumens

6. Protection and Seal

The Red Spectrum Solitaire® LED carries an IPX7 waterproof rating, meaning it is designed to withstand temporary water immersion to a depth of 1 meter under the applicable test conditions. This provides substantially more water protection than a flashlight designed only to resist rain or splashing.

It is also rated for 2-meter drop resistance, adding durability for a compact flashlight likely to be carried on keys, in pockets, flight bags, vehicle kits, outdoor equipment, field kits, or professional gear. Its aluminum housing, waterproof construction, protected LED system, and impact resistance make it suitable for regular field, professional, and everyday use.

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Test Depth: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Housing: Aluminum

• Light Source: Red Spectrum LED

• Maximum Output: 33 lumens

• Beam Distance: 35 m

• Peak Beam Intensity: 304 cd

Full Specifications

• Product Name: Maglite® Red Spectrum Solitaire® LED Flashlight

• Series: Maglite® Spectrum Series

• Product Type: Compact / Small Everyday-Carry Keychain-Sized Red LED Flashlight

• Light Source: Red Spectrum LED

• Beam Color: Red

• Maximum Output: 33 lumens

• Beam Distance: 35 m / approx. 115 ft.

• Peak Beam Intensity: 304 cd

• Runtime – High: 1 hr.

• Runtime – Low: N/A

• Runtime – Eco: N/A

• LED Thermal Management: LED Heat-Sink Technology

• Power Management: Basic

• Switching: Twist-Head On/Off

• Beam Focus: Adjustable Spot to Flood

• Focus Control: Rotating Head

• Hands-Free Function: Candle Mode

• Battery Type: AAA Alkaline

• Battery Quantity: 1

• Battery Configuration: 1-Cell AAA

• Battery Included: Yes

• Rechargeable: No

• Construction: Aluminum

• Body Color: Black

• Spectrum Accent: Red

• Grip: Deeply Grooved / Textured Body

• Key Ring/Lanyard Attachment: Yes

• Length: 3-3/16 in. / 81 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.5 in. / 12.70 mm

• Weight with Battery: 0.8 oz. / 22.67 g

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Test Depth: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Specialized Applications: Night-vision preservation, low-light navigation, aircraft cockpit use, truck cab use, confined-space work, astronomy, equipment checks, reading, field use, and other low-light applications where red illumination and preservation of dark adaptation are beneficial

Product Name: Maglite® Red Spectrum Solitaire® LED Flashlight
Series: Maglite® Spectrum Series
Product Type: Compact / Small Everyday-Carry Keychain-Sized Red LED Flashlight
Light Source: Red Spectrum LED
Beam Color: Red
Maximum Output: 33 lumens
Beam Distance: 35 m / approx. 115 ft.
Peak Beam Intensity: 304 cd
Runtime – High: 1 hr.
Runtime – Low: N/A
Runtime – Eco: N/A
LED Thermal Management: LED Heat-Sink Technology
Power Management: Basic
Switching: Twist-Head On/Off
Beam Focus: Adjustable Spot to Flood
Focus Control: Rotating Head
Hands-Free Function: Candle Mode
Battery Type: AAA Alkaline
Battery Quantity: 1
Battery Configuration: 1-Cell AAA
Battery Included: Yes
Rechargeable: No
Construction: Aluminum
Body Color: Black
Spectrum Accent: Red
Grip: Deeply Grooved / Textured Body
Key Ring/Lanyard Attachment: Yes
Length: 3-3/16 in. / 81 mm
Barrel Diameter: 0.5 in. / 12.70 mm
Head Diameter: 0.5 in. / 12.70 mm
Weight with Battery: 0.8 oz. / 22.67 g
Waterproof: Yes
Water-Protection Rating: IPX7
Waterproof Test Depth: 1 m
Drop Resistance: 2 m / approx. 6.6 ft.
Specialized Applications: Night-vision preservation, low-light navigation, aircraft cockpit use, truck cab use, confined-space work, astronomy, equipment checks, reading, field use, and other low-light applications where red illumination and preservation of dark adaptation are beneficial
