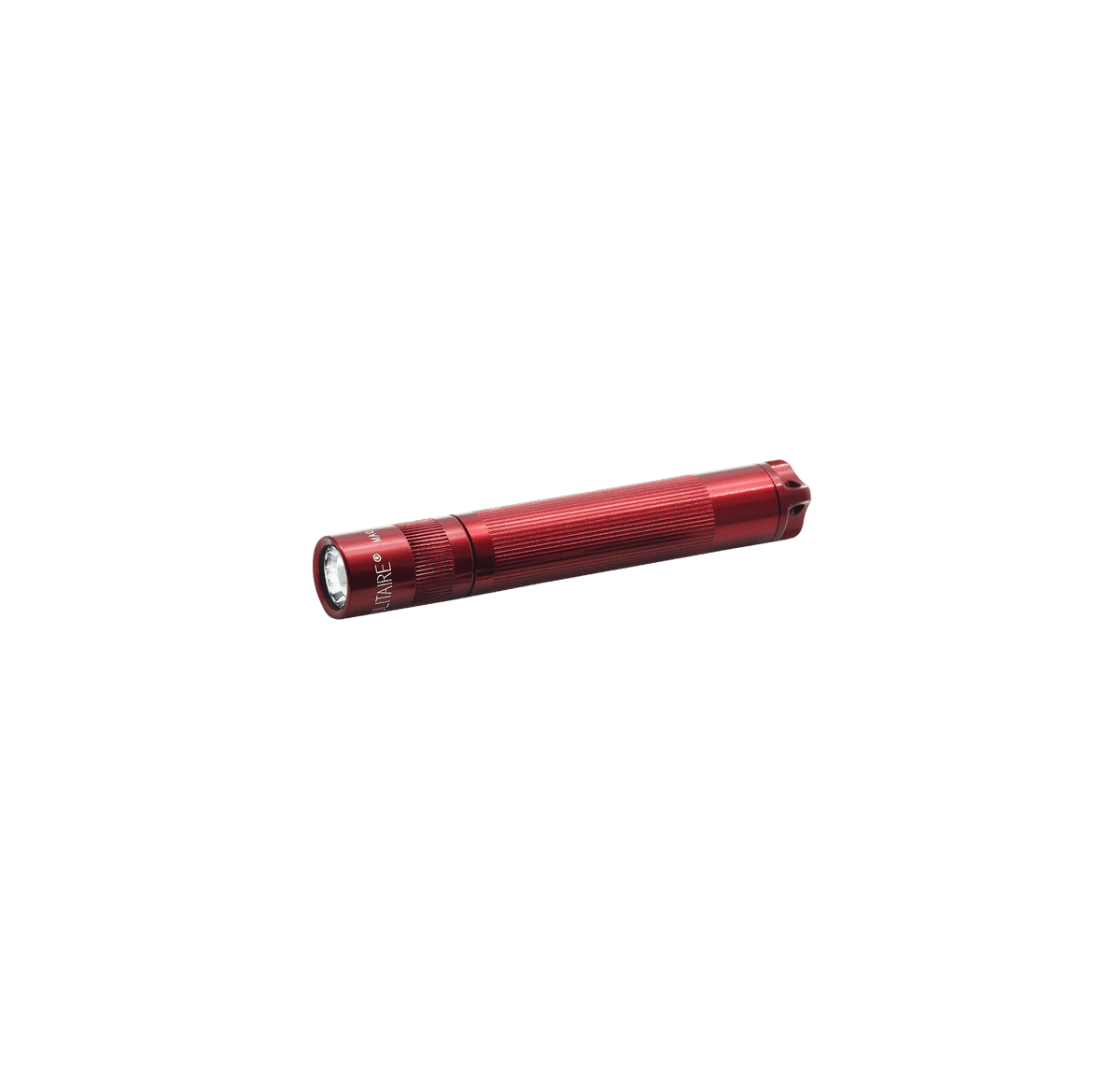

The Maglite® Solitaire® LED Flashlight is an ultra-compact, keychain-size LED flashlight designed to put useful everyday illumination into a body measuring just over 3 inches long. It delivers 47 lumens, a 46-meter beam distance, 539 candela peak beam intensity, and approximately 1 hour 45 minutes of runtime from a single AAA alkaline battery. Its simple twist-head operation also provides spot-to-flood adjustable focus and hands-free Candle Mode, while LED Heat-Sink Technology, basic power management, machined anodized aluminum construction, a deeply grooved grip, keychain attachment point, and IPX7 waterproof protection make it practical for pockets, key rings, bags, emergency kits, vehicles, travel, and everyday backup lighting.

1. 46-Meter Beam Reach, 539 Candela & 1-Hour 45-Minute Runtime

Despite its keychain-size dimensions, the Solitaire® LED produces 47 lumens and projects its beam up to 46 meters (approximately 151 feet). Peak beam intensity is 539 candela, providing a useful concentrated beam for close-range and everyday tasks such as locating keyholes, reading labels, finding dropped objects, navigating dark areas, checking equipment, or keeping an independent light source available during an outage.

The Solitaire® LED has a single primary output level rather than separate High, Low, and Eco settings. ANSI performance data rates runtime at approximately 1 hour 45 minutes.

• Beam Distance: 46 m / approx. 151 ft.

• Peak Beam Intensity: 539 cd

• Maximum Output: 47 lumens

• Runtime – High: 1 hr. 45 min.

• Low Mode: N/A

• Eco Mode: N/A

• Light Source: LED

2. LED Heat-Sink Technology, Adjustable-Focus Head & Spot-to-Flood Beam

The Solitaire® uses an efficient LED light engine with LED Heat-Sink Technology to help manage heat produced by the LED and support dependable operation within its exceptionally compact housing. Basic power management helps manage available battery power during use.

Its rotating head incorporates Maglite®'s spot-to-flood adjustable focusing system. Twisting the head changes the beam from a tighter spot for directing light farther ahead to a broader flood pattern for illuminating a wider nearby area. Because the head also controls power, focusing and switching are integrated into the same simple mechanism.

• Light Source / Technology: LED

• Thermal Management: LED Heat-Sink Technology

• Power Management: Basic

• Focus System: Adjustable Spot-to-Flood Beam

• Focus Control: Rotating Head

• Maximum Output: 47 lumens

• Beam Distance: 46 m

• Peak Beam Intensity: 539 cd

• Head Diameter: 0.5 in. / 12.70 mm

3. Twist-Head On/Off, Full Power, Adjustable Focus & Candle Mode

The Solitaire® LED keeps operation intentionally simple. Twist the head to turn the flashlight on or off, and continue rotating it to adjust the beam between spot and flood. There is no separate electronic multi-mode push-button interface to learn.

The flashlight provides its 47-lumen Full Power output during normal operation. It can also be configured for hands-free Candle Mode, allowing the light to function as a small stationary area light when hands-free illumination is more useful than a directional handheld beam.

• Switching System: Twist-Head On/Off

• Primary Output: Full Power

• Maximum Output: 47 lumens

• Focus: Adjustable Spot to Flood

• Focus Control: Twist Head

• Hands-Free Function: Candle Mode

• High Runtime: 1 hr. 45 min.

• Power Management: Basic

• Electronic Multi-Mode Switching: No

4. Machined Anodized Aluminum Construction, Grooved Grip & Keychain-Size Design

The Solitaire® LED carries the traditional Maglite® construction approach into an extremely compact format. Its body is made from machined anodized aluminum, providing a lightweight but durable housing suitable for everyday carry.

A long, deeply grooved gripping surface covers much of the body, making the small flashlight easier to hold and rotate when operating or focusing the head. At only 3.1875 inches / 81 mm long and 0.5 inch / 12.70 mm in diameter, it is sized for a key ring, pocket, purse, backpack, emergency kit, glove compartment, or small tool kit. An attachment point at the tail allows convenient keychain or lanyard-style carry.

• Construction: Machined Anodized Aluminum

• Body Style: Compact Keychain-Size Design

• Grip: Deeply Grooved / Textured Body

• Carry Feature: Tail Attachment Point for Keychain Carry

• Length: 3.1875 in. / 81 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.5 in. / 12.70 mm

• Weight with Battery: 0.8 oz. / approx. 23 g

• Maximum Output: 47 lumens

5. Single AAA Alkaline Battery for Simple, Widely Available Power

The Solitaire® LED is powered by just one AAA alkaline battery, which is included. The single-cell configuration is a major part of the flashlight's compact dimensions and low carry weight while using a battery size that is inexpensive and widely available.

The flashlight is not rechargeable. When the battery is depleted, a fresh AAA cell can be installed immediately without waiting for a charging cycle, making the Solitaire® practical as a backup light that can remain on a keychain or in emergency gear.

• Battery Type: AAA Alkaline

• Battery Quantity: 1

• Battery Configuration: 1-Cell AAA

• Battery Included: Yes

• Rechargeable: No

• Power Management: Basic

• Runtime – High: 1 hr. 45 min.

• Maximum Output: 47 lumens

6. IPX7 Waterproof Protection & Drop-Resistant Aluminum Housing

The Solitaire® LED is rated IPX7 waterproof, providing substantially more water protection than a basic splash-resistant flashlight. Its sealed construction is designed to withstand temporary water immersion under the conditions represented by the IPX7 rating, making the light well suited to keychain and everyday carry where rain, splashes, and accidental exposure to water are realistic possibilities.

Its anodized aluminum housing also provides impact protection for everyday use. Combined with the compact one-piece-style cylindrical form, protected LED system, and sealed construction, the Solitaire® is designed as a small light that can remain with the user rather than being reserved only for planned flashlight use.

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Depth Rating: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Housing: Machined Anodized Aluminum

• Light Source: LED

• Beam Distance: 46 m

• Peak Beam Intensity: 539 cd

• Maximum Output: 47 lumens

Full Specifications

• Product Name: Maglite® Solitaire® LED Flashlight

• Product Type: Compact / Small Everyday-Carry Keychain-Size LED Flashlight

• Light Source: LED

• LED Thermal Management: LED Heat-Sink Technology

• Maximum / High Output: 47 lumens

• Beam Distance: 46 m / approx. 151 ft.

• Peak Beam Intensity: 539 cd

• Runtime – High: 1 hr. 45 min.

• Runtime – Low: N/A

• Runtime – Eco: N/A

• Primary Output Mode: Full Power

• Switching / Operation: Twist-Head On/Off

• Focus System: Adjustable Spot-to-Flood Beam

• Focus Control: Rotating Head

• Hands-Free Function: Candle Mode

• Power Management: Basic

• Battery Type: AAA Alkaline

• Battery Quantity: 1

• Battery Configuration: 1-Cell AAA

• Battery Included: Yes

• Rechargeable: No

• Construction: Machined Anodized Aluminum

• Grip: Deeply Grooved / Textured Body

• Carry Feature: Keychain Attachment Point

• Length: 3.1875 in. / 81 mm

• Barrel Diameter: 0.5 in. / 12.70 mm

• Head Diameter: 0.5 in. / 12.70 mm

• Weight with Battery: 0.8 oz. / approx. 23 g

• Waterproof: Yes

• Water-Protection Rating: IPX7

• Waterproof Depth Rating: 1 m

• Drop Resistance: 2 m / approx. 6.6 ft.

• Available Colors: Black / Red / Silver / Blue / Gray

Product Name: Maglite® Solitaire® LED Flashlight
Product Type: Compact / Small Everyday-Carry Keychain-Size LED Flashlight
Light Source: LED
LED Thermal Management: LED Heat-Sink Technology
Maximum / High Output: 47 lumens
Beam Distance: 46 m / approx. 151 ft.
Peak Beam Intensity: 539 cd
Runtime – High: 1 hr. 45 min.
Runtime – Low: N/A
Runtime – Eco: N/A
Primary Output Mode: Full Power
Switching / Operation: Twist-Head On/Off
Focus System: Adjustable Spot-to-Flood Beam
Focus Control: Rotating Head
Hands-Free Function: Candle Mode
Power Management: Basic
Battery Type: AAA Alkaline
Battery Quantity: 1
Battery Configuration: 1-Cell AAA
Battery Included: Yes
Rechargeable: No
Construction: Machined Anodized Aluminum
Grip: Deeply Grooved / Textured Body
Carry Feature: Keychain Attachment Point
Length: 3.1875 in. / 81 mm
Barrel Diameter: 0.5 in. / 12.70 mm
Head Diameter: 0.5 in. / 12.70 mm
Weight with Battery: 0.8 oz. / approx. 23 g
Waterproof: Yes
Water-Protection Rating: IPX7
Waterproof Depth Rating: 1 m
Drop Resistance: 2 m / approx. 6.6 ft.
Available Colors: Black / Red / Silver / Blue / Gray
