The Mag-Tac® Rechargeable LED Crown Bezel Flashlight is a compact, professional-grade rechargeable tactical flashlight engineered for dependable illumination, rapid operation, and convenient charging. Using the latest attached ANSI performance data, it delivers a 185-meter beam distance, 8,545 candela peak beam intensity, and 740 lumens maximum output. High provides approximately 1 hour of runtime, while Low extends runtime to approximately 18 hours. Four selectable functions—Full Power, Momentary, Power Save, and Strobe—provide flexible control through the tail-cap QuickClik® electronic switching system. A crowned bezel, LED Heat-Sink Technology, dynamic power management, rugged machined-aluminum construction, aggressive knurled grip, detachable pocket clip, rechargeable LiFePO4 battery, USB-powered mountable charging base, IPX4 water resistance, and 1-meter drop resistance make it practical for professional, emergency, security, outdoor, and everyday use.

1. 185-Meter Beam Reach, 8,545 Candela & Up to 18-Hour Runtime

The Mag-Tac® Rechargeable combines a compact tactical form with practical beam reach and extended low-output runtime. Its LED reaches 185 meters (approximately 607 feet) and generates 8,545 candela peak beam intensity, providing a concentrated beam for illuminating and identifying subjects at distance.

High provides approximately 1 hour of runtime, while Low extends operation to approximately 18 hours for tasks where maximum output is not required. Maximum output according to the latest attached ANSI performance graphic is 740 lumens.

• Beam Distance: 185 m / approx. 607 ft.

• Peak Beam Intensity: 8,545 cd

• Runtime – High: 1 hr.

• Runtime – Low: 18 hr.

• Maximum Output: 740 lumens

• Light Source: LED

2. LED Heat-Sink Technology, Dynamic Power Management & Crown-Bezel Head

The Mag-Tac® Rechargeable uses an LED lighting system with LED Heat-Sink Technology to manage heat generated by the LED and support dependable performance. Dynamic power management electronically manages available battery power for efficient operation.

Its distinctive crowned bezel provides a rugged front configuration around the optical system. The head incorporates design-balanced optics for beam performance and a durable polycarbonate lens. The fixed optical configuration allows the flashlight's operating functions to be controlled through the tail-cap switch without requiring adjustment of the head.

• Light Source / Technology: LED

• Thermal Management: LED Heat-Sink Technology

• Power Management: Dynamic

• Optics: Design-Balanced Optics

• Lens: Polycarbonate

• Bezel: Crown Bezel

• Beam Distance: 185 m

• Peak Beam Intensity: 8,545 cd

• Maximum Output: 740 lumens

• Head Diameter: 1.050 in. / 26.67 mm

3. QuickClik® Tail-Cap Switching with Full Power, Momentary, Power Save & Strobe

The Mag-Tac® Rechargeable uses a tail-cap-switch-activated QuickClik® electronic switching system that lets the user cycle through four available operating functions while maintaining a secure grip on the flashlight.

Full Power provides maximum illumination. Momentary keeps the light illuminated only while the tail-cap switch is pressed, useful for brief illumination, signaling, and quick checks. Power Save reduces output to conserve battery power and extend runtime. Strobe provides a high-energy 12 Hz flashing signal for attention-getting and emergency applications.

• Switching System: QuickClik® Electronic Tail-Cap Switch

• Number of Functions: 4

• Operating Functions: Full Power / Momentary / Power Save / Strobe

• Full Power: Maximum brightness

• Momentary: Light operates only while switch is pressed

• Power Save: Reduced output for extended battery life

• Strobe: 12 Hz flashing signal

• Runtime – High: 1 hr.

• Runtime – Low / Power Save: 18 hr.

• Maximum Output: 740 lumens

• Power Management: Dynamic

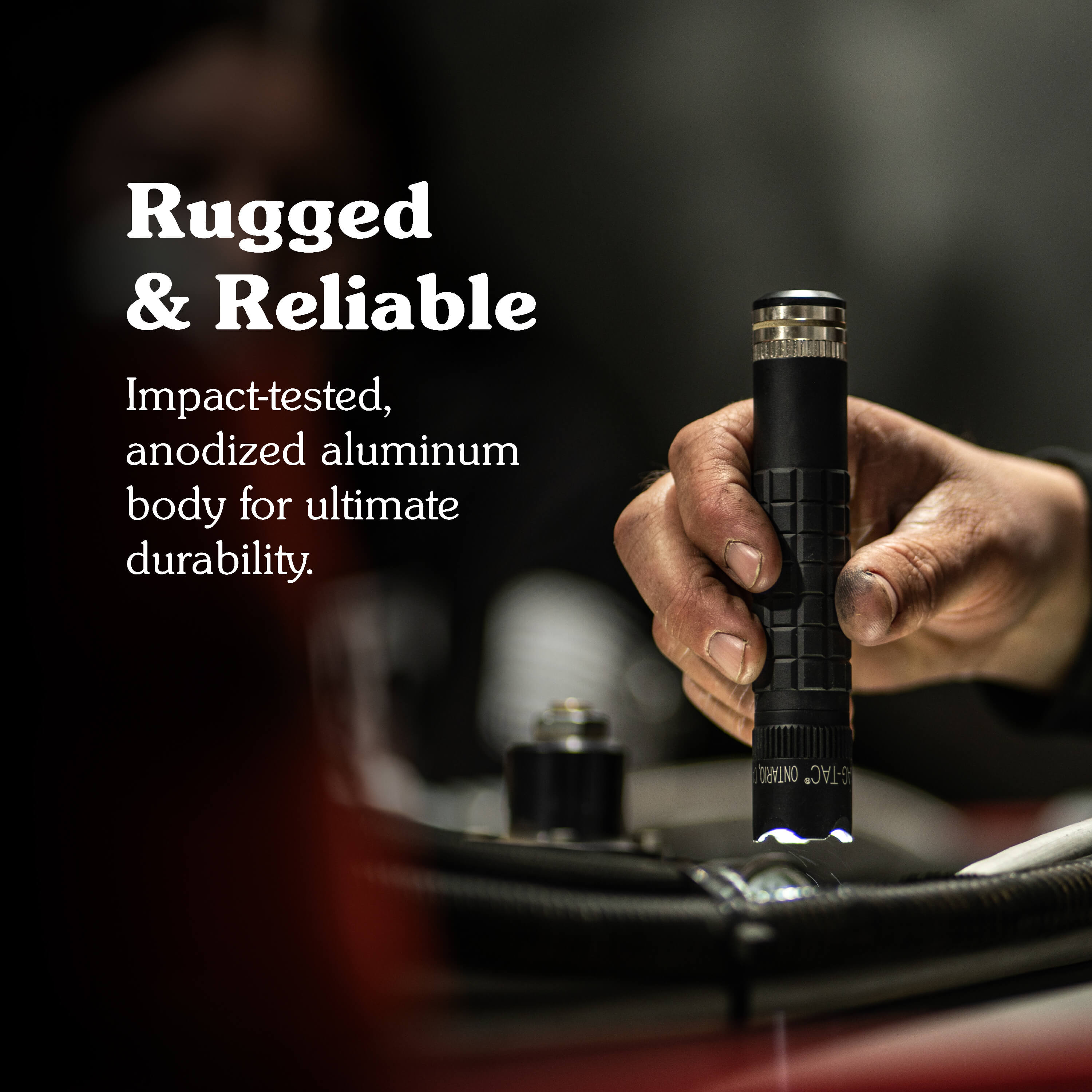

4. Rugged Machined Aluminum Construction, Aggressive Knurled Grip & Pocket Clip

The Mag-Tac® Rechargeable is built around a compact machined-aluminum body intended for demanding handheld use. Its aggressive faceted knurl design creates a pronounced gripping surface for secure handling during professional, outdoor, emergency, and everyday tasks. Corrosion-resistant metal springs are used throughout the flashlight.

A detachable pocket clip with a paracord hole provides a convenient carry and retention point. The crowned-bezel version measures approximately 5.8 inches long with a 1.05-inch barrel and head diameter. With the rechargeable battery installed, it weighs approximately 5.61 ounces / 159 grams.

• Construction: Rugged Machined Aluminum

• Grip: Aggressive Faceted Knurl Design

• Internal Hardware: Corrosion-Resistant Metal Springs

• Carry Feature: Detachable Pocket Clip

• Pocket Clip Feature: Paracord Hole

• Length: 5.8 in. / approx. 147.3 mm

• Barrel Diameter: 1.050 in. / 26.67 mm

• Head Diameter: 1.050 in. / 26.67 mm

• Weight with Battery: 5.61 oz. / approx. 159 g

• Bezel Style: Crowned

• Finish / Color: Black

• Maximum Output: 740 lumens

5. Rechargeable LiFePO4 Battery & USB-Powered Mountable Charging Base

The Mag-Tac® Rechargeable is powered by a high-capacity Lithium Iron Phosphate (LiFePO4) rechargeable battery engineered for long service life. Unlike disposable-battery Mag-Tac® models, this system is designed for repeated charging, making it practical for frequently used duty, work, emergency, and household lighting.

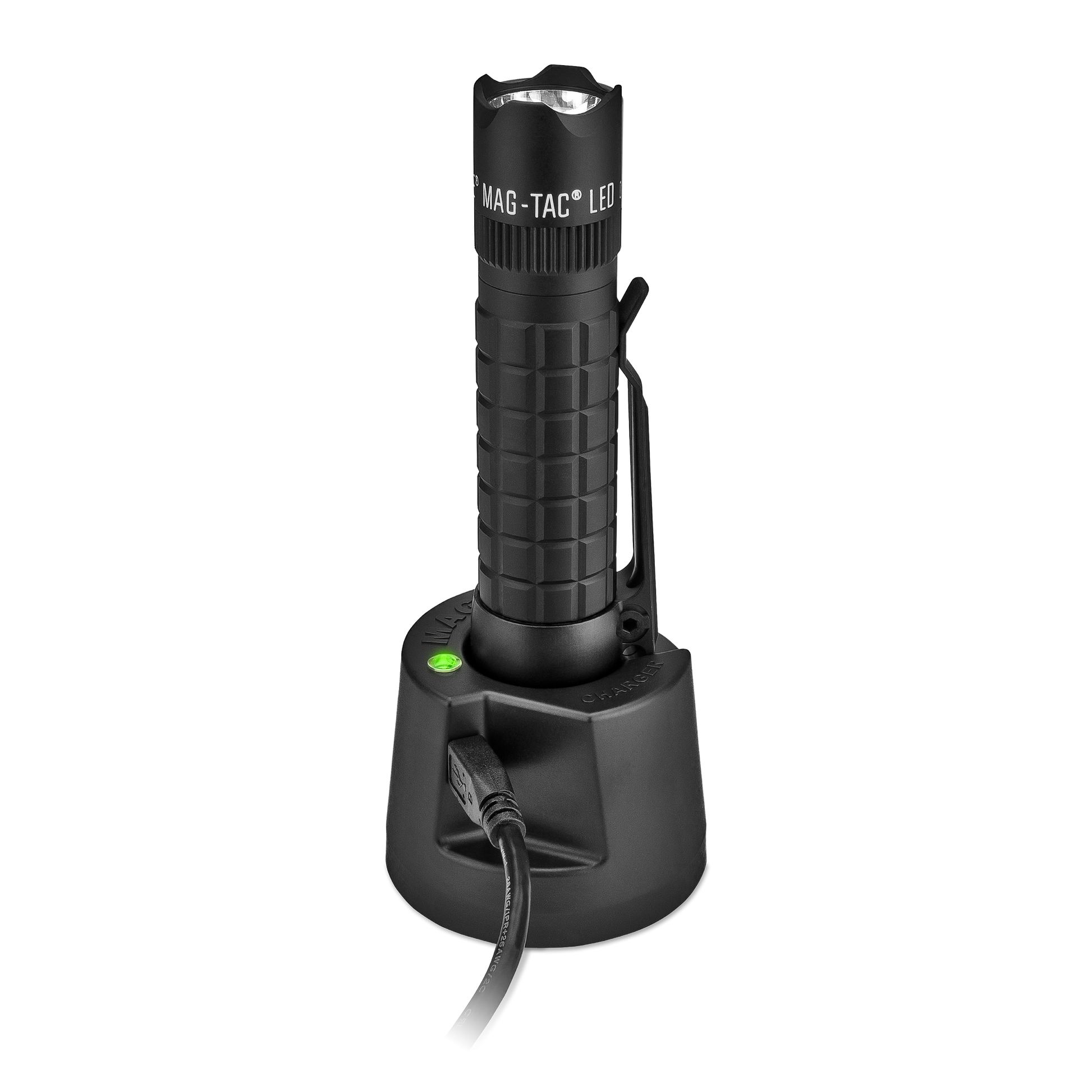

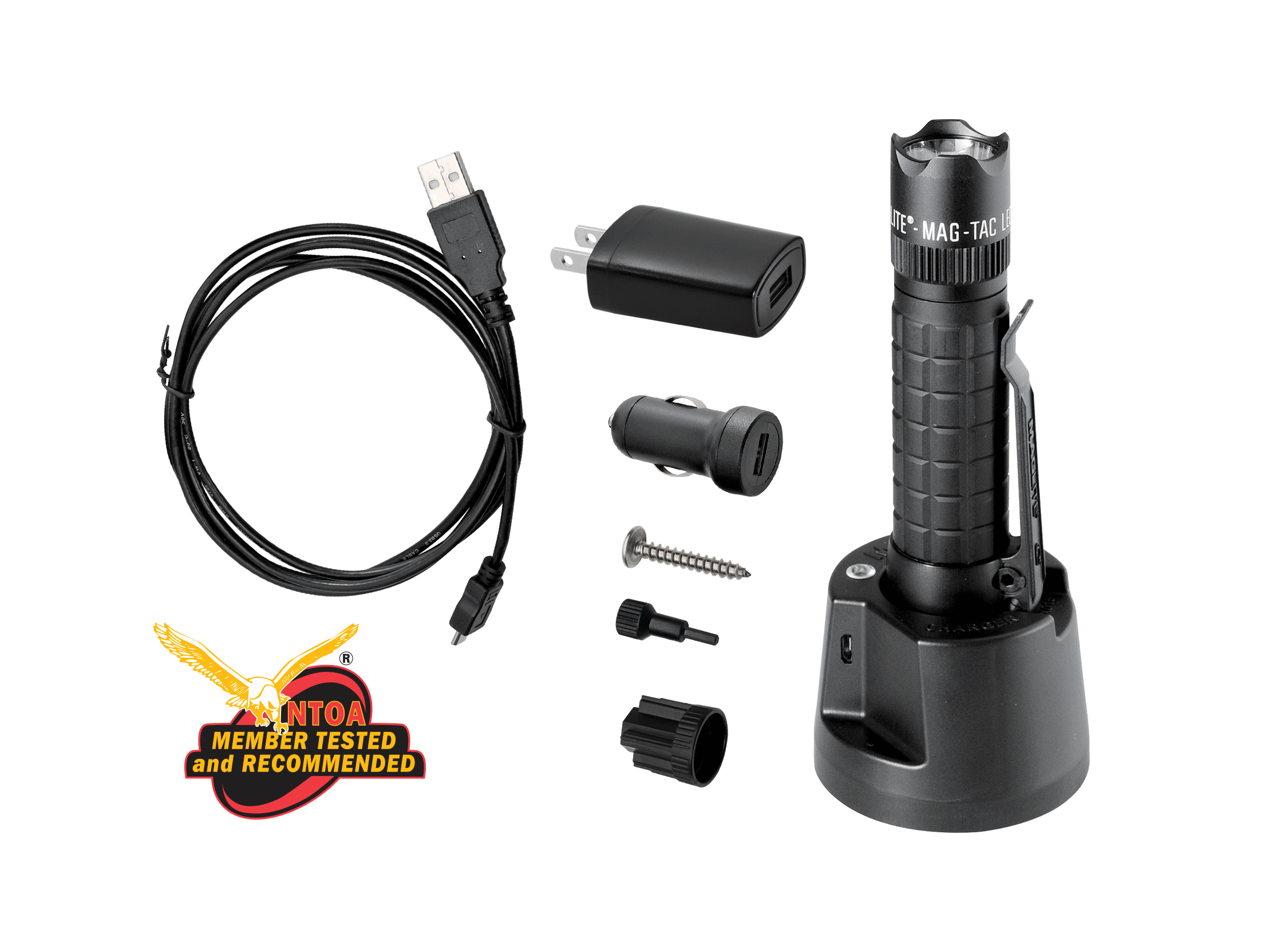

The system includes a USB-powered mountable charging base that securely holds the flashlight for charging and storage. A full charge takes approximately 2.5 hours. The charging base can be powered by a compatible USB 2.0 power source, providing flexible charging options for home, vehicle, office, or field use.

• Battery Chemistry: Lithium Iron Phosphate / LiFePO4

• Battery Quantity: 1 rechargeable battery pack

• Battery Included: Yes

• Rechargeable: Yes

• Charging Time: Approx. 2.5 hr.

• Charging System: USB-Powered Mountable Charging Base

• Charging Interface: USB 2.0-Compatible Power Source

• Power Management: Dynamic

• Runtime – High: 1 hr.

• Runtime – Low / Power Save: 18 hr.

• Maximum Output: 740 lumens

6. IPX4 Water Resistance & Drop-Resistant Construction

The Mag-Tac® Rechargeable Crown Bezel is IPX4 water resistant, providing protection against splashing water for use in rain and other wet working conditions. Its rugged machined-aluminum housing, corrosion-resistant internal metal components, polycarbonate lens, and crowned-bezel head support dependable use in demanding environments.

Current specifications list 1-meter drop resistance. Combined with its secure knurled grip, rechargeable power system, and water-resistant construction, the flashlight is designed for dependable professional and everyday field use.

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Housing: Machined Aluminum

• Lens: Polycarbonate

• Internal Springs: Corrosion Resistant

• Bezel: Crown Bezel

• Beam Distance: 185 m

• Peak Beam Intensity: 8,545 cd

• Maximum Output: 740 lumens

Full Specifications

• Product Name: Mag-Tac® Rechargeable LED Crown Bezel Flashlight

• Product Type: Rechargeable Compact Tactical / Everyday-Carry LED Flashlight

• Light Source: LED

• LED Thermal Management: LED Heat-Sink Technology

• Beam Distance: 185 m / approx. 607 ft.

• Peak Beam Intensity: 8,545 cd

• Runtime – High: 1 hr.

• Runtime – Low / Power Save: 18 hr.

• Maximum Output: 740 lumens

• Number of Functions: 4

• Operating Functions: Full Power / Momentary / Power Save / Strobe

• Full Power: Maximum brightness

• Momentary: Light remains on only while the switch is pressed

• Power Save: Reduced-output mode for extended battery life

• Strobe: 12 Hz flashing signal

• Switching System: QuickClik® Electronic Tail-Cap Switch

• Power Management: Dynamic

• Bezel Style: Crown Bezel

• Optical System: Design-Balanced Optics

• Focus System: Fixed Optical Configuration

• Lens: Polycarbonate

• Battery Chemistry: Lithium Iron Phosphate / LiFePO4

• Battery Quantity: 1 rechargeable battery pack

• Battery Included: Yes

• Rechargeable: Yes

• Charging Time: Approx. 2.5 hr.

• Charging System: USB-Powered Mountable Charging Base

• Construction: Rugged Machined Aluminum

• Grip: Aggressive Faceted Knurl Design

• Internal Springs: Corrosion-Resistant Metal Springs

• Pocket Clip: Detachable

• Pocket Clip Feature: Paracord Hole

• Length: 5.8 in. / approx. 147.3 mm

• Barrel Diameter: 1.050 in. / 26.67 mm

• Head Diameter: 1.050 in. / 26.67 mm

• Weight with Battery: 5.61 oz. / approx. 159 g

• Water Resistant: Yes

• Water-Resistance Rating: IPX4

• Drop Resistance: 1 m / approx. 3.3 ft.

• Color / Finish: Black / Stealth Matte Finish

• Certification / Recommendation: National Tactical Officers Association (NTOA) Member Tested and Recommended

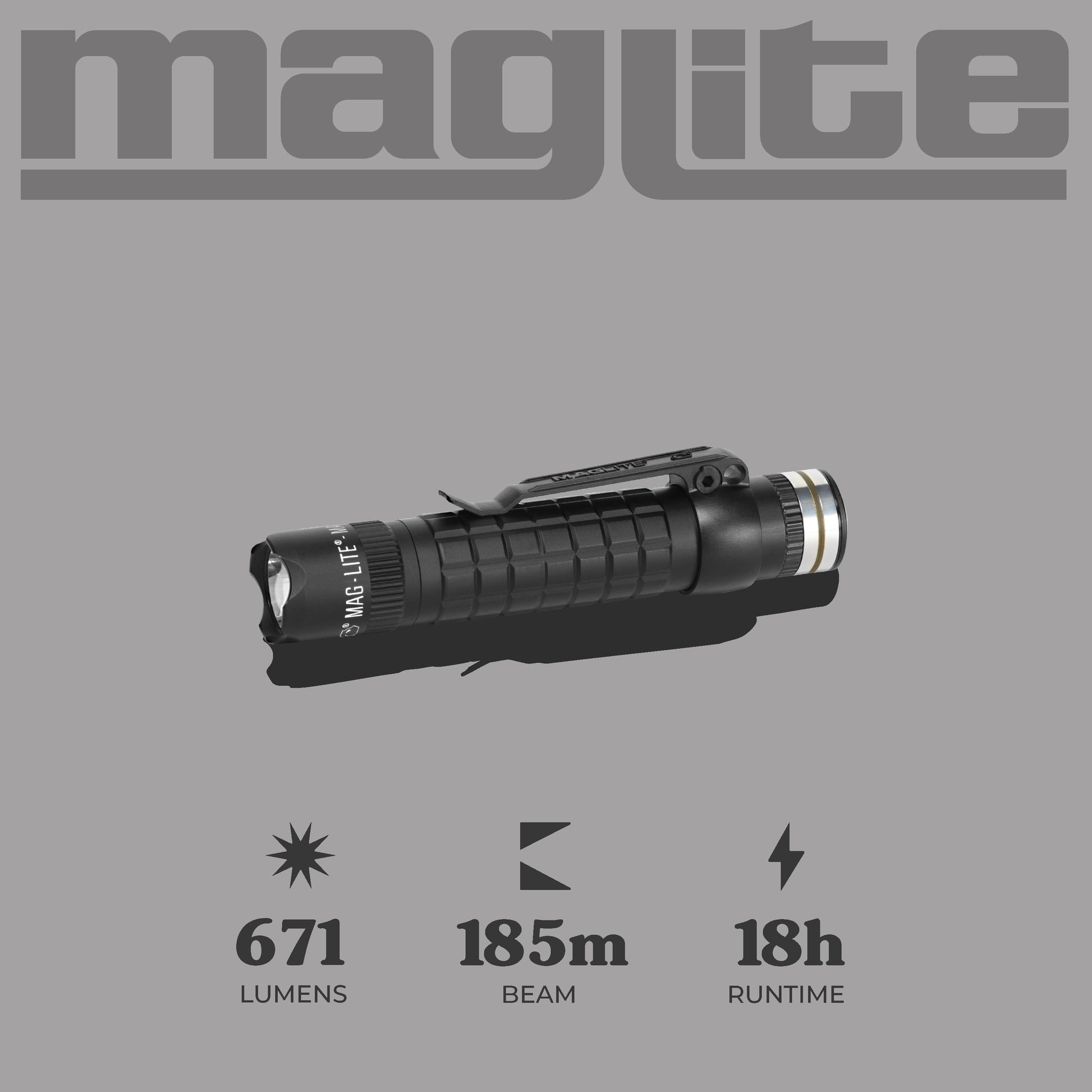

BRIGHTNESS: 671 Lumens
BEAM DISTANCE: 185 Meters
PEAK INTENSITY: 8,545 Candela
WATER RESISTANCE: IPX4
*MAX RUNTIME:
*RUNTIME HIGH-MODE:
*RUNTIME LOW-MODE: 18 Hours on Low
*RUNTIME ECO-MODE:
DROP RESISTANCE: 1 m
BATTERY: LiFePO4 (C-Cell Size) Batteries Included
WEIGHT WITH BATTERIES: 5.61 oz
DIMENSIONS: Flashlight 5.8"x 1.05"
Charging Base 2"x 1.75"
PACKAGING: Chipboard Box

*Our models are tested for longest possible runtime. If runtime data is available for ECO or LOW, it means that mulitple modes are available for this model. If runtime data is only available for HIGH, it means there is only one mode available for this model. If no data is available, it means the data is on the main model product page.
